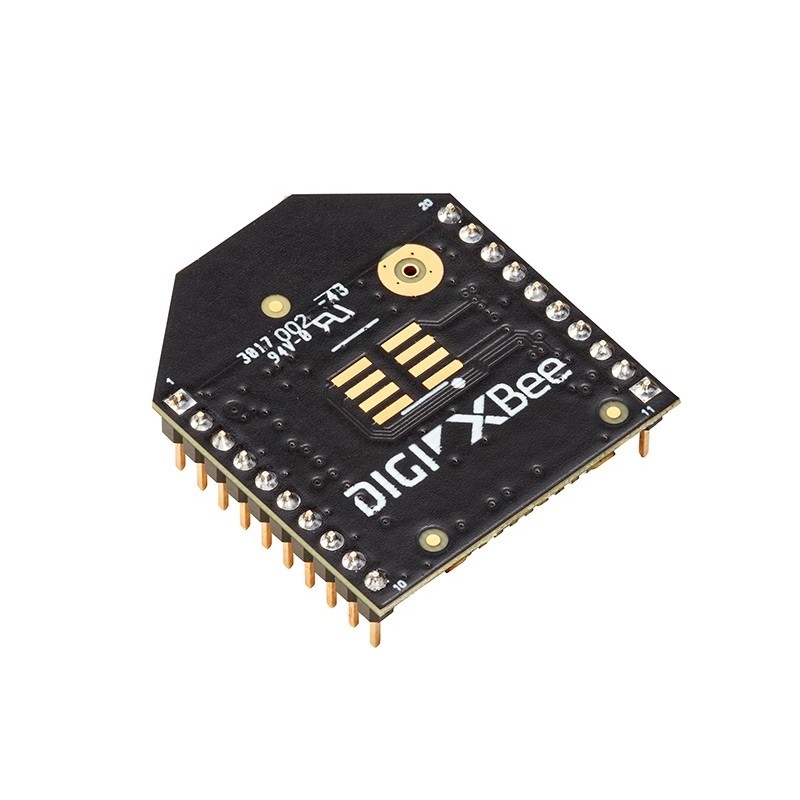

Digi XBee3 Module,2.4 Ghz ZB 3.0, PCB Antena - XB3-24Z8PT-J

: COM04025
33,50 €
preço com IVA incluído
Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Digi XBee3® modules accelerate time to market for designers, OEMs and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed.

Digi XBee3 Zigbee 3.0 offers a fully interoperable ecosystem covering all vertical markets including building automation, smart energy, digital health, intelligent lighting, and others.

With Digi Remote Manager®, Digi XBee3 modules can be easily configured and controlled from a simple, central platform. Built-in Digi TrustFence® security, identity and data privacy features use more than 175 controls to protect against new and evolving cyber threats. MicroPython and XCTU software tools simplify adding functionality, configuration and testing.

From edge computing to future migration, Digi XBee modules offer size, weight, power and performance advantages ideal for scalable device connectivity. A versatile addition to the expanding Digi XBee Ecosystem of wireless modules, adapters and software, the Digi XBee3 Series is engineered to accelerate development and deployment.




Features
  • At 13 mm x 19 mm, the new Digi XBee3 micro form factor allows for more compact and portable applications
  • Digi XBee3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh® and BLE, all configurable via Digi XCTU
  • Eliminate the need for an external microcontroller and create smart end nodes using MicroPython
  • Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT

Drivers and Downloads:

SpecificationsDigi Xbee3 Zigbee 3.0Digi Xbee3 PRO Zigbee 3.0
PERFORMANCE
TRANSCEIVER CHIPSET Silicon Labs EFR32MG SoC
DATA RATE RF 250 Kbps, Serial up to 1 Mbps
INDOOR/URBAN RANGE* Up to 200 ft (60 m) Up to 300 ft (90 m)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 4000 ft (1200 m) Up to 2 miles (3200 m)
TRANSMIT POWER +8 dBm +19 dBm
RECEIVER SENSITIVITY (1% PER) -103 dBm Normal Mode
FEATURES
SERIAL DATA INTERFACE UART, SPI, I2C
CONFIGURATION METHOD API or AT commands, local or over-the-air (OTA)
FREQUENCY BAND ISM 2.4 GHz
FORM FACTOR Micro, Through-Hole, Surface Mount
INTERFERENCE IMMUNITY DSSS (Direct Sequence Spread Spectrum)
ADC INPUTS (4) 10-bit ADC inputs
DIGITAL I/O 15
ANTENNA OPTIONS Through-Hole: PCB Antenna, U.FL Connector, RPSMA Connector
SMT: RF Pad, PCB Antenna, or U.FL Connector
Micro: U.FL Antenna, RF Pad, Chip Antenna
OPERATING TEMPERATURE -40º C to +85º C
DIMENSIONS (L X W X H) Through-Hole: 0.960 x 1.087 in (2.438 x 2.761 cm)
SMT: 0.866 x 1.33 x 0.120 in (2.199 x 3.4 x 0.305 cm)
Micro: 0.533 x 0.76 x 0.087 in (13 x 19 x 2 mm)
PROGRAMMABILITY
MEMORY 1 MB / 128 KB RAM (32KB are available for MicroPython)
CPU/CLOCK SPEED HCS08 / up to 50.33 MHz
NETWORKING AND SECURITY
PROTOCOL Zigbee® 3.0
ENCRYPTION 128/256 bit AES
RELIABLE PACKET DELIVERY Retries/Acknowledgements
IDS PAN ID and addresses, cluster IDs and endpoints (optional)
CHANNELS 16 channels
POWER REQUIREMENTS
SUPPLY VOLTAGE 2.1 to 3.6V
TRANSMIT CURRENT 40 mA @ 8 dBm 135 mA @ 19 dBm
RECEIVE CURRENT 17 mA
POWER-DOWN CURRENT 2 micro Amp @ 25 degrees C
REGULATORY APPROVALS
FCC, IC (NORTH AMERICA) Yes Yes
ETSI (EUROPE) Yes No
RCM (Australia) Yes Yes
Anatel (Brazil) Yes Yes
Teleck MIC (Japan) Yes No
KCC (South Korea) Yes No
