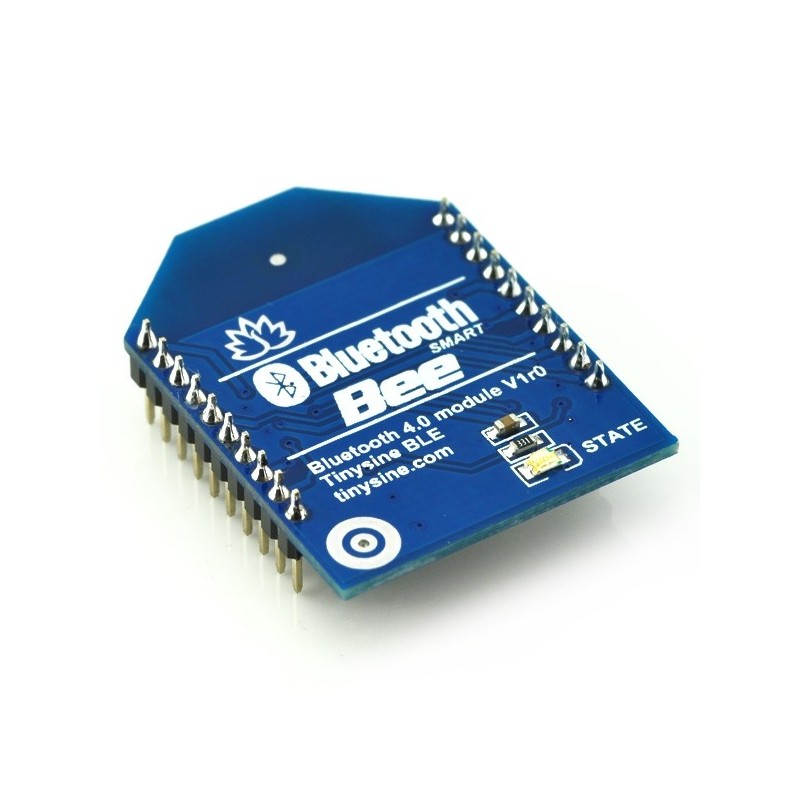

Modulo Bluetooth Bee - BLE compatível com iPhone

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

The Bluetooth Bee is a Bluetooth 4.0 wireless module Based on CC2541 chip. It has compact size and the pinoutis compatible with XBEE which is suitable for all kinds of microcontroller systems who have 3.3V power out, the module can use the ATcommands to set baud rate.The Bluetooth Bee module comes with an onboard antenna, the antenna provides better signal quality. It actslike a transparent serial port, It can works with iphone and Android devices which support bluetooth 4.0

Bluetooth Bee Bluetooth wireless module can modify the baud rate to use XBEE adapter. You can use XBEE Arduino controller receives thebase plug, enabling Bluetooth wireless control.

Specifications

• 1. Bluetooth chip: CC2541
• 2. Bluetooth protocol: Bluetooth 4.0 SMART
• 3. Operating frequency: 2.4 ~ 2.48GHz unlicensed ISM band
• 4.Speed: Asynchronous: 6K Bytes, Synchronous: 6K Bytes
• 5. Modulation: GFSK (Gaussian Frequency Shift Keying)
• 6. Transmit Power: 23dbm,  -6dbm,  0dbm,  6dbm,  can  modify  through  AT command
• 7. Transmission distance: 50 ~ 60m in free space
• 8. Ultra-lowstandby power consumption 400uA ~ 800uA
• 9. Support profiles: Bluetooth serial port
• 10. Serial port settings: 1200 ~ 230400 / N / 8 / 1
• 11. Baud rate default: 9600
• 12. Input Voltage: +3.3 DC/50mA
• 13. Operating temperature: -20 ℃ ~ +55 ℃
• 14. Module Size: 32 × 24 × 9mm

Document:

• AT Command
• iPhone test APP
