TSIR04 - 4saidas, 4entradas opticamente isoladas WiFi

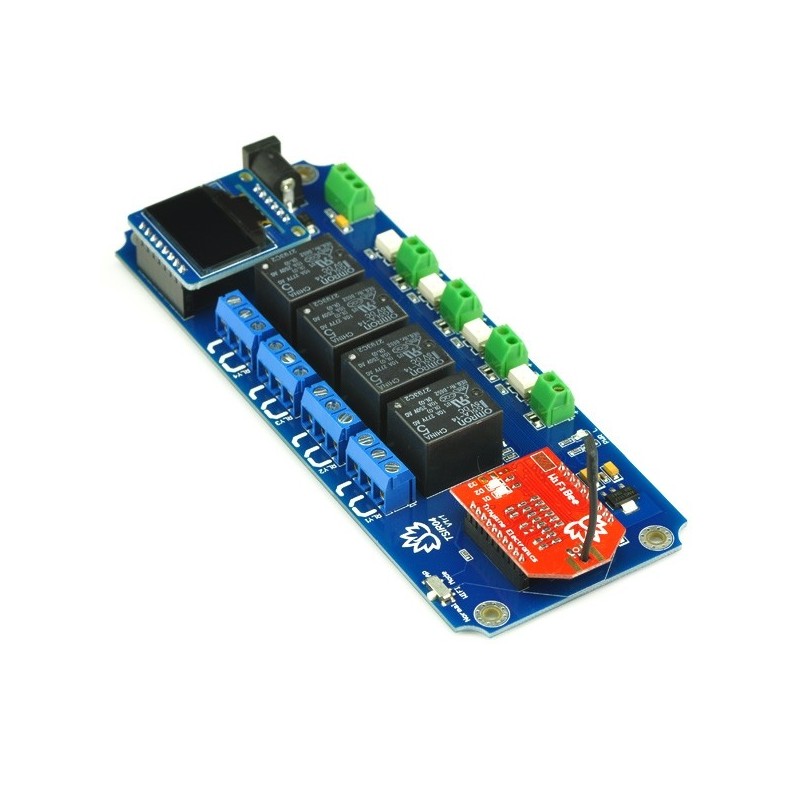

This is a TSIR04 WiFi verison relay board with optically isolated inputs and OLED display and temperature sensor port. Very powerful and easy to use. You can easily control this relay board by your computer or smartphone using WiFi. The communication way also can be changed easily. Remove the WiFiBee module instead with a BluetoothBee, it becomes a Bluetooth relay. It will be a USB relay when you plugged a USBBee. Very convenient to use.

The TSIR04 provides four volt free contact relay outputs with a current rating of up to 10Amp each. The module is powered from a 12V DC power supply. The DC input jack is 2.1mm with positive core polarity, The relays are SPDP types.

Optically Isolated Inputs

TSIR04 has 4 optically Isolated input ports. Input voltage absolute Max. 30v DC, Operational 4.5v to 27v DC. TSIR0x has 2 working modes:

Normal mode: When the board read a input signal. Reporting the input state.

Auto mode: When the board read a input signal. Reporting the input state and turn on the corresponding relay. When the input voltage removed, relay turn off.

OLED display

OLED display show the current board state. You can check the state no need connect with you PC.

Relay power rating
If the relay is used at a voltage or current exceeding this specification, the life of the contacts may be significantly shortened.

A full datasheet for the relays used on the TSIR04 is here: G5LA datasheet

Please choose the correct DC power supply for your board.,

Commands
The TSIR04 operates with an easy to use command set as described in the table below.

TSIR04 Baud rate : 9600

Test program
To get the TSIR0x up and running in the minimum amount of time we have put together an example program to demonstrate the functionality of the module.We also provide a FREE android/IOS App TSIR WiFi. You can control your device by your phone very easily.

Documents:

• User Manual
• G5LA datasheet
• CP210x Driver
• Test Program
• Realterm serial debug tool
• Android APP(Bluetooth)
• Android APP(WiFi)
• iPhone APP (Bluetooth)
• iPhone APP (WIFI)
