Interruptor controlado por Smartphone

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

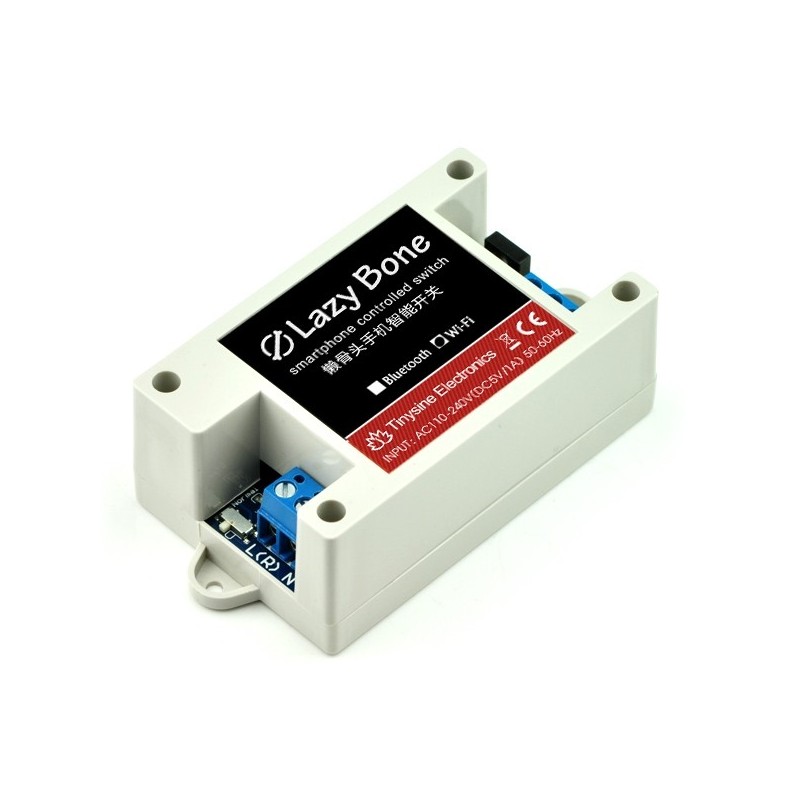

Do you want to control any electrical device on/off on your smart phone? If you also have this idea, ok, this 'Lazy Bone' is exactly what you need. 'Lazy Bone' is a new product of Tinysine Electronics, which has a good performance of stablity and it's very easy to use. It can control a lamp, router, fan and other electrical equipments on and off by the Android/IOS phone or PC. This WiFi Lazybone can also be set to the AP mode. So you can control it point to point even without a router.

Now we released LazyBone V2 support instantaneous function. You can set your Lazybone output a 100ms-20s pulse. It's can be used to control your garage-door or some other equipments.

Software Installation:

It has 2 basic version: Bluetooth and WIFI. And this is the WiFi LazyBone.  We provide free Android&IOS APP for you to control it.

How to use the software:

1. Click the APP, if your phone WiFi is not open , it will indicate to open it.

2. Configure your Lazybone WiFi , Here is a Setting Guide.

3. Now can control the device on/off by press the on/off button displayed.

Instantaneous mode:

1. Click the Modes, You will entering mode setting page.

2. You can set the pulse time (100ms-20s). And turn on Instantaneous mode.

3. Back to main page, now you click the button it will have a pulse ouput. Turn on->keeping a while->release.

Cable connect diagram：

'LAZY BONE' has 2 kinds of working mode:

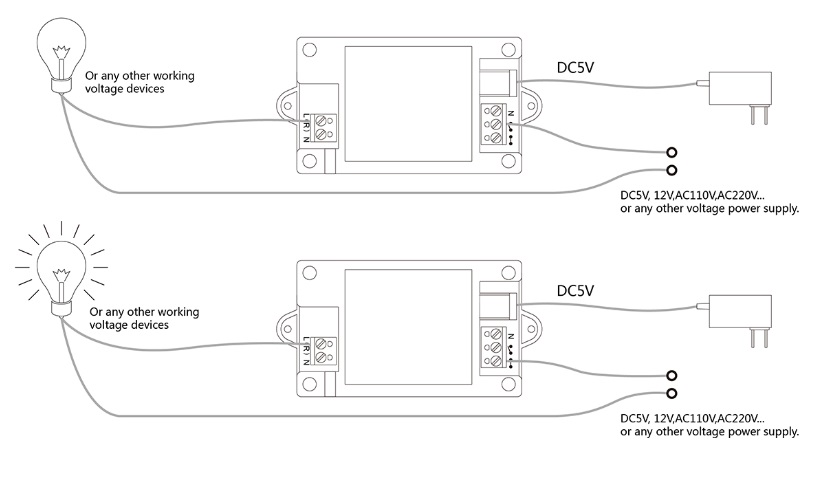

Self power mode:

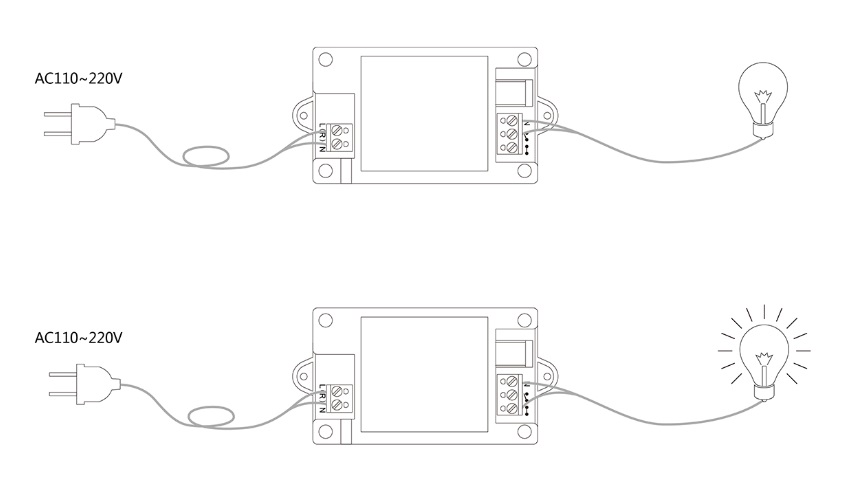

Wireless switch:

Commands
We also provided a very simple command set for developer developing their own APP.  The Lazybone operates with an easy to use command set as described in the table below.

Features:

• AC100-240 or DC5V working voltage.
• Current rating of up to 10 Amp.
• WiFi network remote control
• Support Android: Above V2.2

Download:

• Android APP V2R3 (+ internet control )
• Android APP V2R2 (Support wireless configration & Instantaneous mode )
• Android APP V2 (Support wireless configration)
• Android APP V1
• iPhone APP
• How to configure LazyBone IP address
• Control Your WiFi LazyBone Through Internet
