UART OBLOQ (WiFi to Serial) - Módulo IoT (Microsoft Azure)

: COM02052
12,50 €
preço com IVA incluído

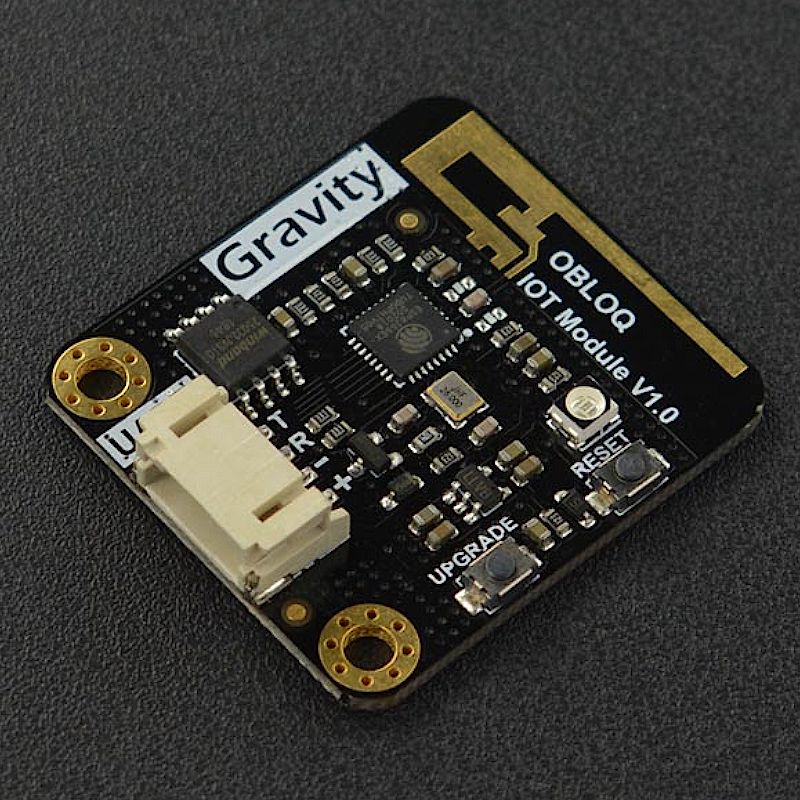

Este Módulo da DFRobot tem como principal função ajudar-te a interagir com o mundo das Internet of Things.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.



Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

If you still don’t know how to play Internet of Things (IoT), the DFRobot OBLOQ module will be ideal for connecting you to the IoT world.
The core of IoT is user experience. It integrates embedded system technology, mobile technology and network technology all together, making up a smart system. It unifies hardware, software and network services, makes them become a whole. You can check these Obloq Tutorials for a initail start.
Gravity: UART OBLOQ module is a WiFi to Serial device. It faces to non-professional developers, supports standard MQTT protocol IoT service such as Microsoft Azure IoT. By OBLOQ module, you can quickly build the IoT applications without having a complex background knowledge of IoT. In this way, makers can really focus on the purpose of creating interesting things on the IoT.
OBLOQ is designed based on ESP8266 WiFi chip, it has compact size, low price, simple interface, plug and play feature, and it works stably under the 3.3V ~ 5V control system.
Below is the connection diagram of Arduino UNO and OBLOQ.

OBLOQ connection diagram with Azure
Microsoft Azure IoT
OBLOQ connection diagram with Azure
Microsoft Azure IoT


Microsoft Azure is a publicly-owned cloud platform, it enables enterprises to run their own applications across the Internet. With Microsoft Azure, organizations can rapidly develop, deploy, and manage applications across multiple data centers.



Project 1: OBLOQ-IoT Module +Micro:bit IoT Flower Watering

Hardware list:

  1. Gravity: UART OBLOQ – IoT Module (Microsoft Azure)

  2. Micro:Mate - A Mini Expansion Board for micro:bit (Gravity Compatible)

  3. BBC Micro:bit

  4. 9g Metal Gear Micro Servo (1.8Kg)

  5. One bottle and part of tube

  6. Gravity: Analog Capacitive Soil Moisture Sensor- Corrosion Resistant



Project 2: Environmental Monitoring System Based on OBLOQ-IoT Module

This product is mainly applied in electronic laboratory to monitor and control indicators such as temperature, humidity, light and dust, and timely upload them to the cloud data space to achieve remote monitoring and control of dehumidifier, air purifier, exhaust fan and dimmable light, etc. in the laboratory.

Hardware List:

  1. Arduino Compatible

  2. e and Humidity Sensor DHT22 Temperatur

  3. Gravity: UART OBLOQ – IoT Module (Microsoft Azure)

  4. Sharp GP2Y1010AU0F Compact optical Dust Sensor

  5. Gravity: i2C BMP280 Barometer Sensor

  6. Gravity: Analog Ambient Light Sensor For Arduino

  7. LCD12864 Shield for Arduino

  8. Quadruple relay module



UART OBLOQ module Tutorials:

  1. UART OBLOQ IoT Module Tutorial 1: a Quick Look in Obloq

  2. UART OBLOQ IoT Module Tutorial 2: Pinging the device

  3. UART OBLOQ IoT Module Tutorial 3: Get Firmware version

  4. UART OBLOQ IoT Module Tutorial 4: Connecting to WiFi

  5. UART OBLOQ IoT Module Tutorial 5: Connecting to MQTT broker

  6. UART OBLOQ IoT Module Tutorial 6: Sending message to MQTT topic

  7. UART OBLOQ IoT Module Tutorial 7: Subscribing to MQTT topic

  8. UART OBLOQ IoT Module Tutorial 8: Sending HTTP GET request

  9. UART OBLOQ IoT Module Tutorial 9: HTTP POST Request

  10. UART OBLOQ IoT Module Tutorial 10: Sending HTTP POST request to Flask server

  11. UART OBLOQ IoT Module Tutorial 11 uPython: Pinging the UART OBLOQ

  12. UART OBLOQ IoT Module Tutorial 12 uPython: Getting firmware version of UART OBLOQ

  13. UART OBLOQ IoT Module Tutorial 13 MicroPython: Connecting the UART OBLOQ to WiFi network

  14. UART OBLOQ IoT Module Tutorial 14 uPython: HTTP UART OBLOQ POST request to Flask server

  15. UART OBLOQ IoT Module Tutorial 15 MicroPython: UART OBLOQ HTTP GET Request to Flask server



Features

  1. Built-in low-power 32-bit CPU: Can be used as an application processor

  2. Built-in protocol: TCP / IP stack

  3. Encryption type: WPA WPA2 / WPA2-PSK

  4. Supports connections to standard MQTT protocols and TTL serial ports to wireless applications



Specification

  1. Operating Voltage: 3.3-5V

  2. Supply Voltage: 3.3 ~ 5.5V

  3. Baud rate: 9600 bps

  4. Wireless Frequency: 2.4GHz

  5. Interface Type: Gravity UART 4PIN

  6. Wireless mode: IEEE802.11b / g / n

  7. SRAM: 160KB

  8. External Flash: 4MB

  9. Supports low power consumption: <240mA

  10. Dimension: 35mm * 32mm / 1.38inch * 1.26inch

  11. Weight: 16g



Documents



Shipping List

  1. Gravity: UART OBLOQ – IoT Module (Microsoft Azure) x1

  2. Gravity 4Pin I2C/UART Sensor Cable x1



TUTORIAL

[The selected] OBLOQ, the easiest IoT module - DFRobot Gravity Sensor 01

COM02052
