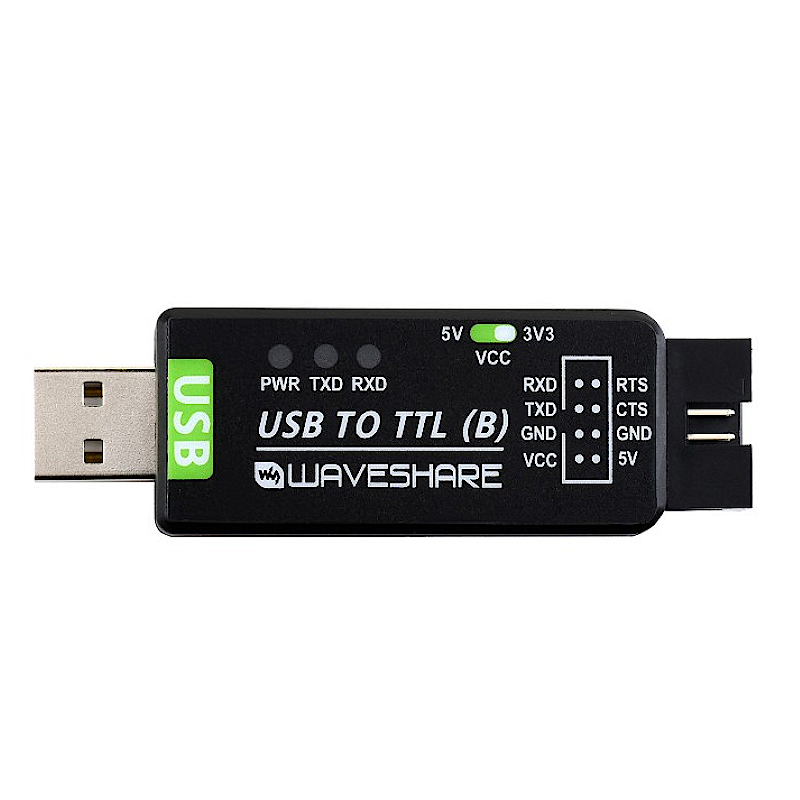

Conversor USB para TTL com Driver CH343G Versão Industrial

: COM09022
7,60 €
preço com IVA incluído

Este conversor industrial USB para TTL usa o chip CH343G e oferece circuitos de proteção múltipla, para além disso este produto tem também 3 LED's para te ajudar a indicar o estador do sinal TX/RX

Se quiseres saber mais sobre este producto, consulta a sua Wiki Page.

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

USB TO TTL CONVERTER

Original CH343G | Stable Transmission | Multi Devices | Multi Systems

Industrial Grade Quality



Features At A Glance

  1. Onboard resettable fuse and TVS diode, providing protections including over-current, over-voltage, backward-proof, and ESD protection, improving shock resistance, safe and stable communications

  2. Onboard IO protection circuit for surge suppress

  3. Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level

  4. 3x LED indicators for easily checking power connection and signal TX/RX statuses

  5. Quality plastic case with dull-polish surface, well-crafted

  6. IDC connector with fool-proof design



Specifications

PRODUCT CATEGORY

Industrial USB TO TTL converter

HOST PORT

USB

DATA RATE

50bps ~ 6Mbps

DEVICE PORT

UART

USB PORT

Connector: USB-A
Protection: resettable fuse, ESD protection

UART PORT

Connector: 8PIN fool-proof header
Protection: IO protection diode

INDICATOR

PWR: power indicator, turns red when USB voltage is detected
TXD: TX indicator, turns red while the USB port is sending data
RXD: RX indicator, turns red while the device port is receiving data



Multiple Protection, Safe And Stable

Onboard Resettable Fuse And TVS Diode, Providing Protections Including Over-Current, Over-Voltage, Backward-Proof, And ESD Protection, Improving Shock Resistance, Safe And Stable Communications



Multiple Systems Support

Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...



Three LED Indicators

Easily Checking The Operating Status, Convenient For Programming / Debugging




USB Signal & Pinouts Definition


5V

5V output

VCC

3.3V or 5V output, configured by switch

GND

Ground

TXD

Connecting to MCU.RX

RXD

Connecting to MCU.TX

RTS

Connecting to MCU.CTS

CTS

Connecting to MCU.RTS



Outline Dimensions



Resources & Services




Selection Guide

PARTNUMBER

USB TO TTL

USB TO TTL (B)

CHIP

FT232

CH343G

DATA RATE

300bps ~ 3Mbps

50bps ~ 6Mbps

HARDWARE FLOW

supported

OS SUPPORT

Win7/8/8.1/10/11, Mac, Linux, Android, WinCE

Win7/8/8.1/10/11, Mac, Linux, Android

USB PORT

Connector: USB-A
Protection: resettable fuse, ESD protection

UART PORT

Connector: 8PIN fool-proof header
Protection: IO protection diode

INDICATORS

PWR: power indicator, turns red when USB voltage is detected
TXD: TX indicator, turns red while the USB port is sending data
RXD: RX indicator, turns red while the device port is receiving data



Package Content

Weight: 0.021 kg

  1. USB TO TTL (B) x1
  2. 8PIN fool-proof wire x1



COM09022
