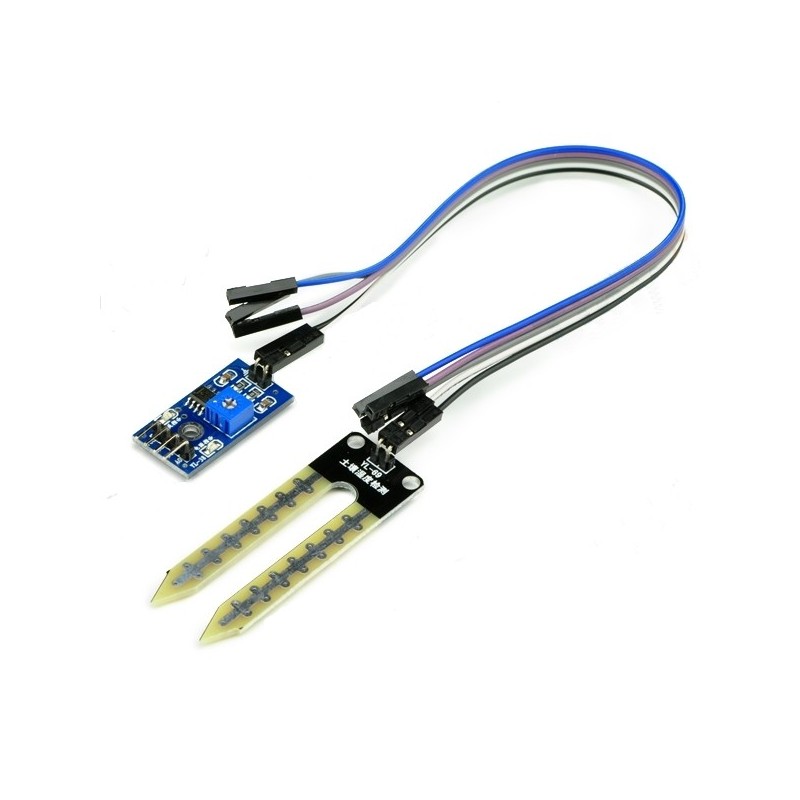

Sensor de humidade no Solo
  • Sensor de humidade no Solo
  • Sensor de humidade no Solo
  • Sensor de humidade no Solo

Sensor de humidade no Solo

: SEN10030
4,90 €
3,25 € Poupe 1,65 €
preço com IVA incluído

Sensor de humidade do solo, Compativel com Arduino, Alimentaçao 3,3V a 5V,Saida analogica e Digital



Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos



Description:


This is a simple water sensor can be used to detect soil moisture when the soil moisture deficit module plant waterer device, so that the plants in your garden without people to manage.



Test procedure

First , we use 5v voltage to the  Soil moisture sensor on pin VCC and GND,the green Power Indicator will be turned on, then we plug it into a small cup, which already fulled with dry soil, and then we pour some water into it,you will find the red led light is on now,if it change back to dry, it will off. Meanwhile,   and if you test the voltage on the pin of DO,  it will change from 4.5v to about 0.15volt, so it is working now, even you can use it to make a automatic equipment to water your flower!

Feature:

1).Module Output is high level when the soil moisture deficit,or output is low.Can be used in module plant waterer device, and the plants in your garden no need people to manage.
2).Adjustable sensitivity by adjusting the digital potentiometer (shown in blue)
3).Operating voltage:3.3V~5V
4).Dual output mode,analog output more accurate.
5).A fixed bolt hole for easy installation
6).Panel PCB Dimension: 30mm * 16mm
7).Soil Probe Dimension:60mm*30mm
8).With power indicator (red) and digital switching output indicator (green)
9).Having LM393 comparator chip, stable

Pin definition

Pin Definition
VCC 5V
GND GND
DO Digital output interface (0 and 1)
AO Analog output interface
SEN10030
