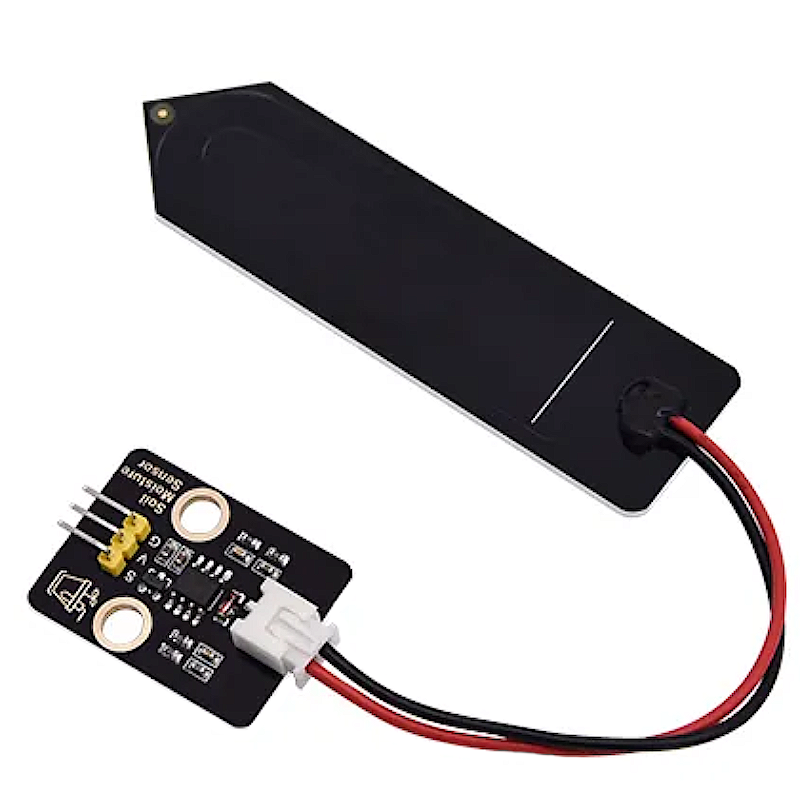

Módulo Sensor de Humidade do Solo Capacitivo para Arduino - Keyestudio KS0510

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description:

This new type capacitive soil humidity sensor differs from other resistive sensors, adopting capacitive sensing principle to detect soil humidity.

It is divided into the signal end and the detected end. When it is inserted into soil, the signal end will output analog value. The segmented the wire connection and casing pipe enhance its waterproof performance.

Since the circuit is not exposed at the detected end, the corrosion problem of sensor is avoided, extending life expectancy.

The built-in chip supports 3.3~5.5V working environment, Arduino, ESP32, micro:bit and controller. As to mini PC, you need an ADC module (analog signals are converted into signals)

Parameters:

1. Control chip: TLC555

2. Communication interface: output analog value

3. Rated voltage: 3.3 ~ 5.5 VDC

4. Output voltage: 0 ~ 3.0 VDC

5. Working current: <5mA

6. Product size: signal end: 31.6mmx23.7mm

7. Detection end: 23.8mm*83mm

8. Operating temperature range: 1°C ~ 50°C
