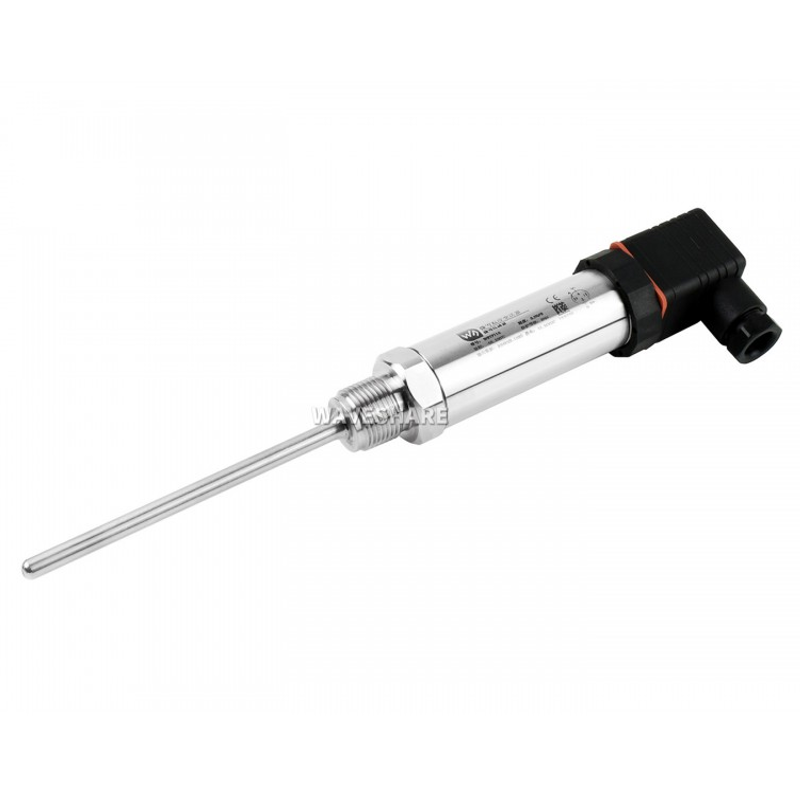

Sensor de Temperatura -50~100º c/ comunicação RS485 p/ Ambiente Industrial

: SEN06058
44,90 €
preço com IVA incluído

Sensor de temperatura que consegue operar entre -50 a 100ºC, com comunicação RS485. Este sensor é leve, pequeno e de fácil instalação.

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Industrial temperature transmitter

Wide range input voltage, non-linear correction, high accuracy

Small Size, Light Weight, Easy Installation


Features at a glance

  • Digital output, via RS485 (standard Modbus-RTU protocol)

  • Wide range input voltage, non-linear correction, high accuracy

  • Small size, light weight, easy installation

  • Lightning-proof，cut-off frequency interference design, strong anti-interference capability

  • Reverse proof, over voltage protection, and current limited protection

  • Measurement accuracy up to 0.5% FS


Specifications

Measured medium

Liquid, gas

Accuracy

0.5% FS

Full weight

180g

Stability

±0.1% FS/year

Measurement range

-50~100℃

Protection rating

IP65

Power supply

12~36V DC

Ambient temperature

-40~85℃

Output signal

RS485 (standard Modbus-RTU protocol)

Ambient humidity

0%~95% RH
(non-condensing, non-frosting)

Material

Probe: 304 stainless steel (contacted)
Intermediate junction: 304 stainless steel (contacted)
Shell: 304 stainless steel
Hirschmann connector: ABS engineering plastics



Digital output

using RS485 bus, standard Modbus-RTU protocol


The USB TO RS485 in the photo is NOT included.


Accurate measurement

up to 0.5％FS accuracy




High ingress protection rating

IP65 protection rating, protected from dust and low pressure water jets from any direction




Details show



Application examples



Connection example


The cable in the photo is NOT included.


Outline dimensions


Resources & Services

Wiki: WSTP11A



Package Content

Weight: 0.334 kg

  1. WSTP11A x1
WSTP11A
