Sensor Temperatura e Humidade SHT20 I2C (à prova de água))

: SEN06038
23,90 €
preço com IVA incluído

Sensor de Temperatura e Humidade SHT20 I2C está equipado com sonda impermeável ideal para uso no exterior.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

INTRODUCTION

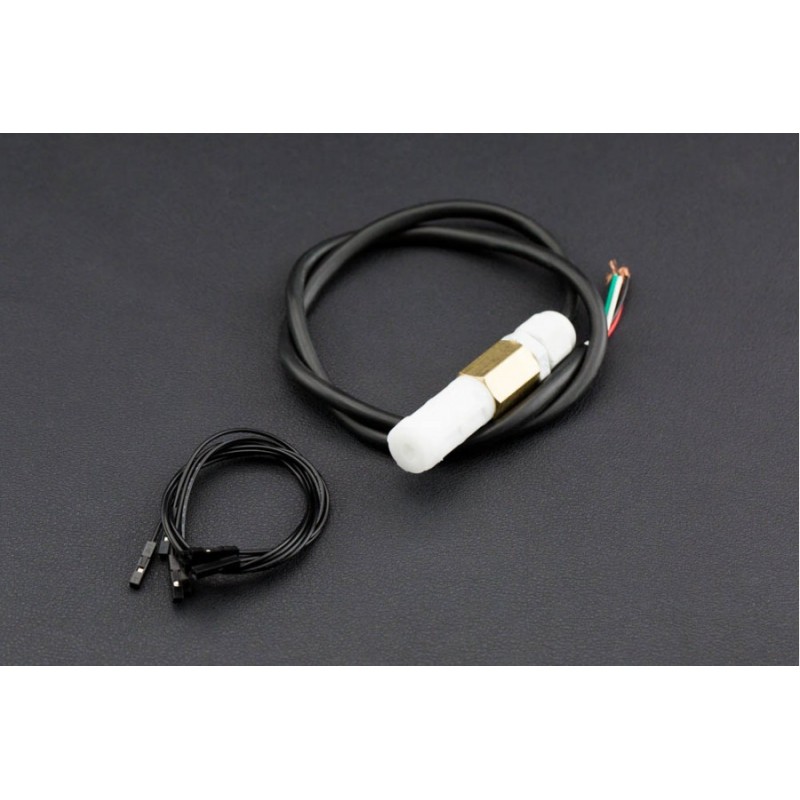

This SHT20 I2C temperature & humidity sensor is equipped with waterproof probe. It comes with the 4C CMOSens® SHT20 temperature & humidity sensor chip and the probe has gone through dual waterproof protection test.
The SHT20 I2C temperature & humidity sensor adopt Sensirion techniques. Except the humidity sensor of capacitive type and the temperature sensor of band gap , SHT20 contains an amplifier, A/D converter, OTP memory and a digital processing unit. Compared with early SHT1x series and SHT7x series, SHT20 shows a strong reliability and long-term stability. It can measure surrounding environment temperature and relative air humidity precisely.
The Arduino SHT20 waterproof temperature & humidity sensor adopts dual waterproof protection techniques. The inner PCB has perfusion and encapsulation protection, and the probe enclosure is made of PE waterproof materials. This is a special waterproof breathable material that allows water molecules to seep in while blocking water droplets from seeping in at the meantime. The sensor won't be damaged even after a long time submerge in the water. There is also a built-in 10k Pull-up resistor and 0.1uf filter capacitor. It enables the sensor to be directly used with the microcontroller such as Arduino. We recommend DFRobot Gravity 4Pin Sensor Adapter convenient.
Sensor Interface:

Red VCC Green GND Black SDA White SCL

SPECIFICATION

  • Operating Voltage: 3.3/5V
  • Communication Interface: I2C / IIC
  • Protection Class: waterproof anti-condensation
  • RH Response Time: 8s (tau63%)
  • Accuracy: ±3% RH / ±0.3 ℃
  • Measuring Range: 0-100% RH / -40-125 ℃
  • Dimension: 73mm * 17mm / 2.87 * 0.67 inches
  • Weight: 44g

DOCUMENTS

Product WIKI
SHT20 Datasheet

SHIPPING LIST

  • SHT20 I2C Temperature & Humidity Sensor (Waterproof Probe) x1
  • Jumper Wires 7.8" F/F x4

SEN06038
