Sensor de temperatura para painel / -30 a +70 °C

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Temperature sensor included!

• DESCRIPTION

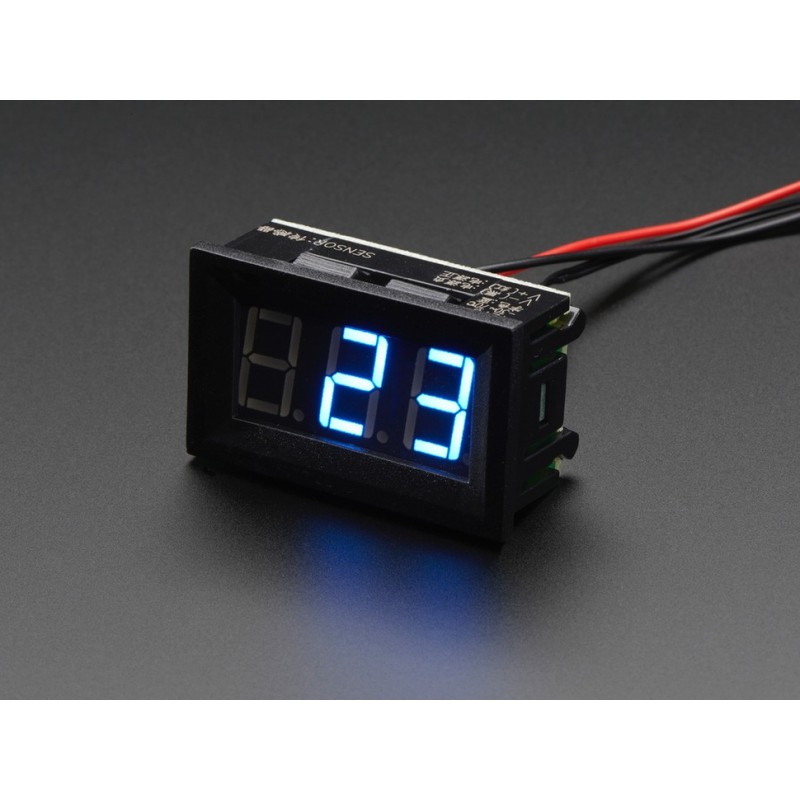

  To use, simply connect the thin red wire to a positive supply, and the thin black wire to ground. Then tape the black thermistor bulb to whatever you want to measure - or leave it loose to measure ambient temperature. The display has a microcontroller that will read thermistor resistance and display the corresponding temperature from -30°C to 70°C with 1 °C precision on a 3-digit 0.56" tall 7-segment display. The meter draws 3-4mA to power the microcontroller and display. This particular LED display is a nice vivid blue, which we found very readable. To mount to your enclosure, simply cut a 45.5mm × 26.5mm rectangle and snap it in.

  This meter can only display the temperature in Centigrade °C, it cannot be modified to °F and we do not have a version that is °F.



• TECHNICAL DETAILS

  Dimensions:

  • Dimensions: 48x29x21mm
  • Digit size: 14mm/0.56" high, blue LEDs
  • Panel cutout: 45.5mm x 26.5mm
  • Power lead length: 15cm
  • Thermistor lead length: 12cm
  • Refresh rate: about 2 Hz

  Power specifications:

  • 4.5V to 30V DC input
  • 0.1V precision
  • 3-4mA draw
  • Blue LED display
  • Reverse polarity protected
