Modulo de Potência DC-DC 25W

: FAL01025
9,60 €
preço com IVA incluído

conversor DC/DC,
entrada :3.6V-25V
saida 3.3V-25V, 25W

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos



Introduction

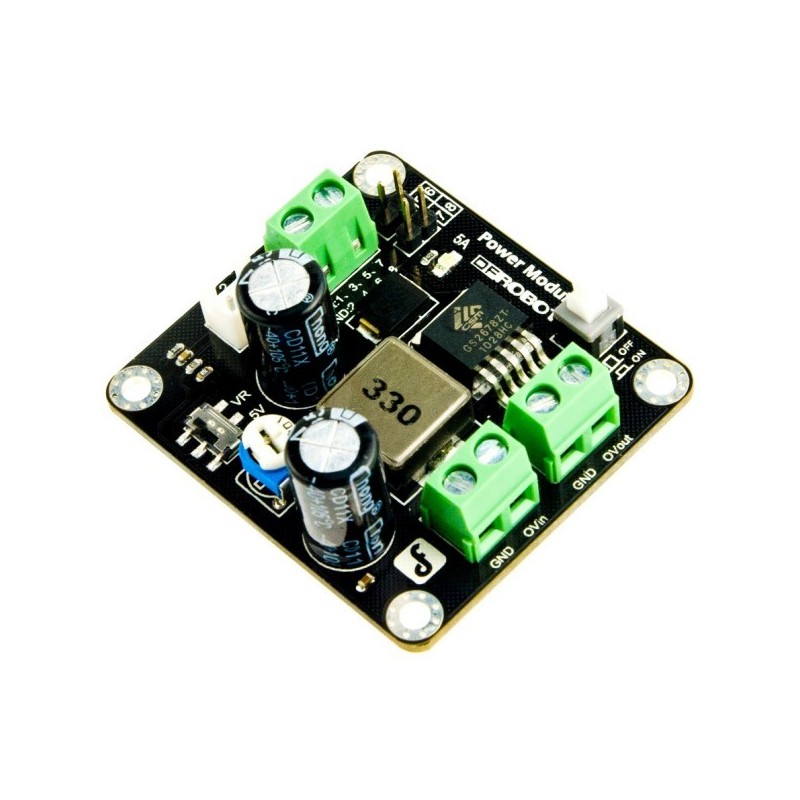

This Power Module is a small size 5A 350KHz 25V Buck DC to DC Converter.It can convert any DC voltage between 3.6V-25V to a selectable voltage from 3.3V to 25V.
You can choose 5V direct output voltage with the switch or adjust the output voltage by the blue&white resistor.It is onvenient for you to choose  three different interfaces of output.The Ovout interface can output the original voltage of input.so that can be used as the power of other module.
The ON/OFF button on the board can be pulled high to turn the converter module on and low to turn it off.

Cautions: The input voltage must be higher than output voltage.

Specification
  • Input voltage range:3.6V-25V
  • Output adjustable range:3.3V-25V
  • Constant output current:5A@5V
  • Max Output Power:25W
  • Switching Frequency:350KHZ
  • Three different output interface
  • One interface of origial voltage output
  • Size:46x50x20mm

Shipping List
  • Power Module  (1 unit)
