Step Down até 3A c/ controlo de corrente para carga de baterias

: FAL08061
3,90 €
preço com IVA incluído

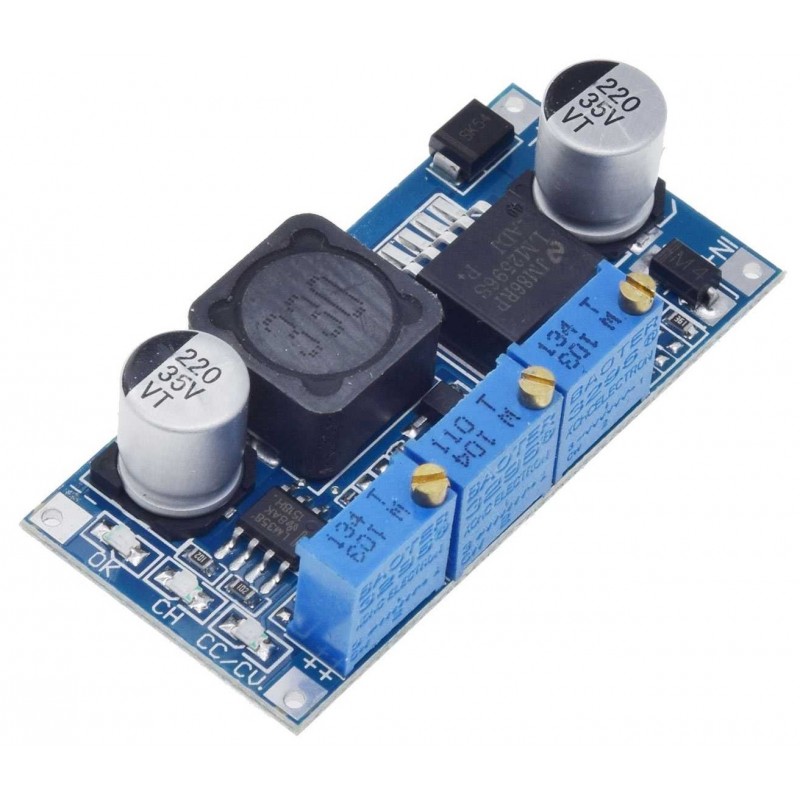

Este conversor DC-DC do tipo step-down usa o driver LM2596 e está preparado para o poder usar como controlador de corrente para alimentação de LEDs, bem como para carregamento de baterias.

Com os 3 potenciómetros de ajuste, pode regular a tensão de saída, bem como limitar a corrente de saída, permitindo assim, no caso de carga de baterias, definir a tensão máxima de carga da bateria e depois limitar a corrente de carga.

Aceita tensões de entrada entre 7~35Vdc e pode regular a saída entre 1.25~30Vdc, sendo que a entrada terá que ser sempre superior à saída pelo menos 2Vdc.

A corrente máxima que pode ser regulada é de 3A.

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features:

1.Fixed turn the LED current to 0.1 times the value of the constant current (charge when used to identify whether the battery is full);
2. Increased input reverse polarity protection diode;
3. Using dedicated reference IC, and high-precision sampling resistor, so that the constant current is more stable, (20 degrees to 100 degrees, the constant current 1A, when the temperature drift of less than 1%).

Particularly suitable for LED driver.

Also suitable for the following applications:

  • High-power LED constant current drive
  • Lithium battery charger (including ferroelectric)
  • 4V, 6V, 12V, 14V, 24V battery charger
  • Nickel cadmium, nickel metal hydride battery pack charger
  • Solar panels and wind turbines



Specifications:

  • Module Properties: non-isolated constant current and voltage module
  • Rectification: non-synchronous rectification
  • Input voltage: 7~35Vdc
  • Output voltage: 1.25~30Vdc
  • Output current: adjustable maximum 3A
  • Conversion efficiency: 92% (the highest)
  • Switching frequency: 150KHz
  • Output ripple: 50mV (max) 20M bandwidth
  • Load Regulation: ± 0.5%
  • Voltage Regulation: ± 2.5%
  • Operating Temperature: -40 ° to +85 °
  • Weight:13 g
  • Color: as picture show
  • Size:46mmx23mmx10mm/1.81\"x0.91\"x0.39\"(inch) (approx)



Battery use:

  • Make sure of the voltage and current of the battery you need to charge
  • Adjust the constant voltage potentiometer to make the output voltage same to the charge voltage
  • Potentiometer Adjustment Direction: Clockwise (increase), counterclockwise (decrease)
  • Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value
  • The charge current of transfer LED is default 0.1 times of the charging current (constant current value)
  • Connect to the battery and try to charging (for previous 5 steps, module input terminal is connected to power source, output load is NOT connected to batteries).

LED Constant Current Driver Use:

  • Make sure operating current and Max operating Voltage of the LED you need to drive.
  • Adjust the constant voltage potentiometer to make sure the output Voltage is up to LED Max operating Voltage.
  • Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer. To make sure the output current to the expected LED operating current.
  • For the above 3 steps, module input terminal is connected to power source, output load is NOT connected.



Package Included:

1 x LM2596 DC-DC Step-down Adjustable DC-DC Module
