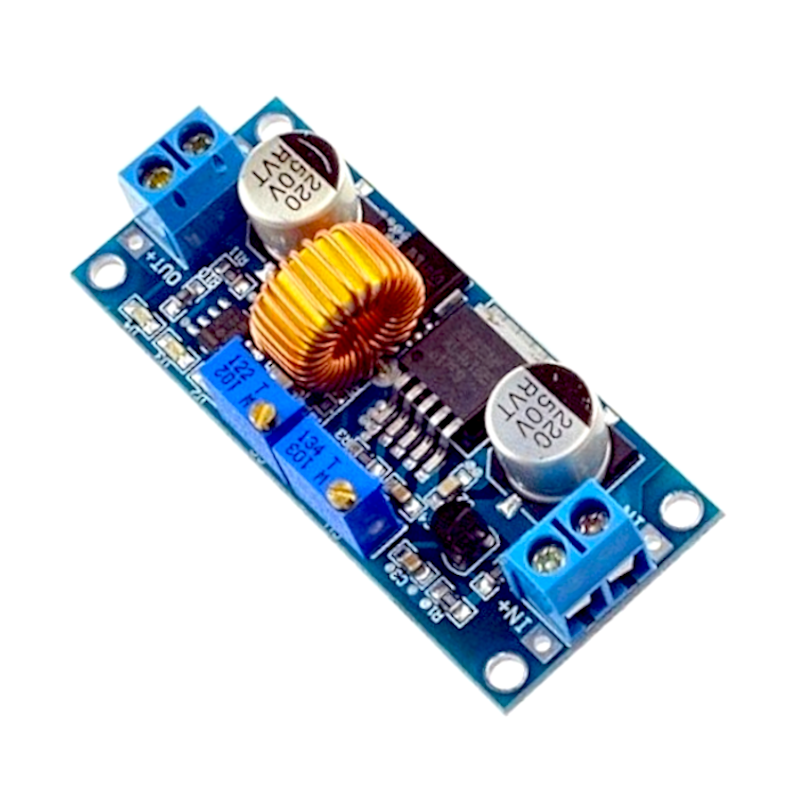

Step-Down Regulável XL4015 DC-DC 1,25~32V Máx. 5A 75W

: FAL08022
6,80 €
preço com IVA incluído
Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Module highlights:5A output  high power MAX 75W
high efficiency and low ripple with power indicator


Performance parameters
1 Input voltage range: 8~36VDC (Note:input voltage not exceeding 36V)
2 Output voltage range;1.25-32VDC adjustable
3 Output current: 0-5A
4 Output power: 75W
5 High efficiency up to 96%
6 Built in thermal shutdown function
7 Built in current limit function
8 Built in output short protection function
9 Input reverse polarity protection: None
(if required, high current diode in series with the input).
10 L x W x H =5.4*2.3*1.5CM

Application
The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, LCD Monitor and LCD TV,portable instrument power supply, telecom/networking equipment,24V vehicle notebook power supply, industrial equipment buck.12V buck to 3.3V, 12V buck to 5V,  24V buck to 5V,24V buck to 12V,  36V buck to 24V etc.
