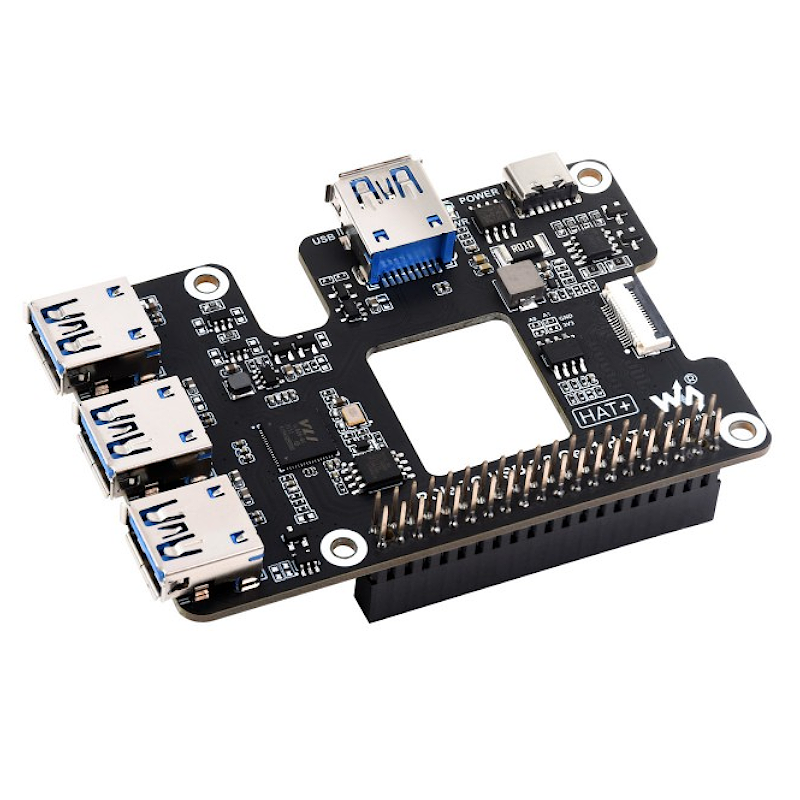

HAT HUB USB PCIe para 4xUSB 3.2 Gen1 para Raspberry Pi 5 plug and play - Waveshare 26847

: PCO01217
21,40 €
preço com IVA incluído

HAT PCIe para USB 3.2 Gen1 para Raspberry Pi 5, HUB PCIe para USB, 4x portas USB de alta velocidade, sem controlador, plug and play, HAT + Standard. Com base na interface PCIe de 16 pinos do Raspberry Pi 5, alarga a interface PCIe a 4 portas USB 3.2 Gen1 de alta velocidade para ligar mais periféricos.

Se quiseres saber mais sobre este produto, consulta aqui a sua Wiki Page.

NOTA: A placa Raspberry Pi 5 e o dissipador não estão incluídos.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

PCIe TO USB 3.2 Gen1 HAT

Designed for Raspberry Pi 5, driver-free, plug and play




Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5


* for reference only, please refer to the Package Content for detailed part list



More USB Capability For Raspberry Pi 5

Extends The PCIe Interface To 4x High Speed USB 3.2 Gen1 Ports for connecting more peripherals




Onboard Power Monitoring Chip And EEPROM

Real-time monitoring of power status, supports USB port power control via software




Reserved Airflow Vent for Cooling fan

Better Cooling Effect For Pi5, more stable operation


* for reference only, the Raspberry Pi 5 and cooling fan are NOT included



What's On Board


  1. Raspberry Pi GPIO header
    for connecting Raspberry Pi 5

  2. USB 3.2 Gen1 expanded ports
    USB1~USB4

  3. INA219
    Power monitoring chip

  4. Power port
    for external Type-C 5V DC power supply

  1. PWR LED
    Power indicator

  2. MX25L3206
    FLASH chip

  3. VL805
    PCIe to USB 3.2 Gen1 HUB

  4. PCIe interface
    for connecting to the PCIe interface of Raspberry Pi 5



How to install


* for reference only, please refer to the Package Content for detailed part list



Outline dimensions




Package Content

Weight: 0.017 kg

  1. PCIe TO USB 3.2 Gen1 HAT+ x1

  2. Standoff pack x1

  3. 16P-Cable-40mm x1


PCO01217
