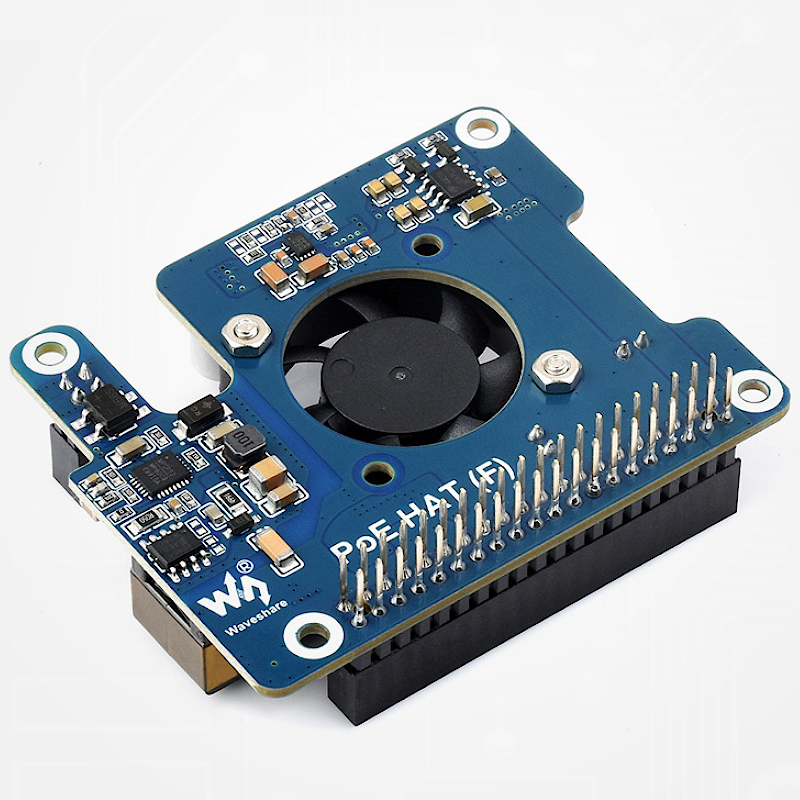

HAT POE para Raspberry Pi 5 (25W) com ventoinha e dissipador onboard - Waveshare 26399

:PCO01213
23,70 €
preço com IVA incluído

O PoE HAT (F) é uma placa de expansão Power Over Ethernet (POE) compatível com 802.3af/at para o Raspberry Pi 5. Adequado para utilização com um router ou switch PoE que suporte a norma de rede IEEE 802.3af/at, a tua placa Raspberry Pi pode ser ligada em rede e alimentada com apenas um cabo de rede.

NOTA: A placa Raspberry Pi 5 não está incluída.

Se quiseres saber mais sobre este produto, consulta aqui a sua Wiki Page.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

POE HAT for Raspberry Pi 5

Power Over Ethernet HAT For Raspberry Pi 5, Supports 802.3af/at Network Standard - 12V and 5V power outputs to support more peripherals




Features at a glance

The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

  1. Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5

  2. PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant

  3. Fully isolated switched-mode power supply (SMPS)

  4. Onboard high speed active cooling fan, with metal heatsink, better heat dissipation



Specifications

PoE power input

37V ~ 57V DC in

Power output

GPIO header: 5V 4.5A (MAX)
2P header: 12V 2A (MAX)

Dimensions

56.5 × 70.0mm

Network standard

IEEE 802.3af/at PoE



Suitable for Raspberry Pi 5

Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs




Power Over Ethernet

Providing both network connection and power supply for your Raspberry Pi in one cable


* for reference only, the Raspberry Pi 5 and switch are NOT included.



Onboard 5V & 12V header outputs

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi


Active Cooling fan

Accelerate Cooling Effect, More Stable Performance


Onboard MP8759GD buck chip

Incorporates original voltage buck chip providing up to 5A under sufficient heat dissipation condition


How to Install

Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT


* for reference only, please refer to the Package Content for detailed part list



Outline dimensions




Resources & Services




Package Content

Weight: 0.067 kg

  1. PoE HAT (F) x1

  2. Metal heatsink x1

  3. Thermal tape (3PCS) x1
