UPS p/ Raspberry Pi Pico p/ Baterias 14500

: PCO01166
14,95 €
preço com IVA incluído

Módulo UPS para Raspberry PI Pico. Para este HAT ser alimentado precisa de uma bateria 14500. Este módulo é capaz de monitorizar a tensão da tua bateria e fazer uma gestão dinâmica de carga e descarga.

Este produto não incliu a bateria 14500 ou a Raspberry Pi Pico.

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

UPS Module for Raspberry Pi Pico, Uninterruptible Power Supply
Uninterruptible Power Supply for Pico

Keeps your Pico running while recharging, monitoring battery status via I2C


Features at a glance

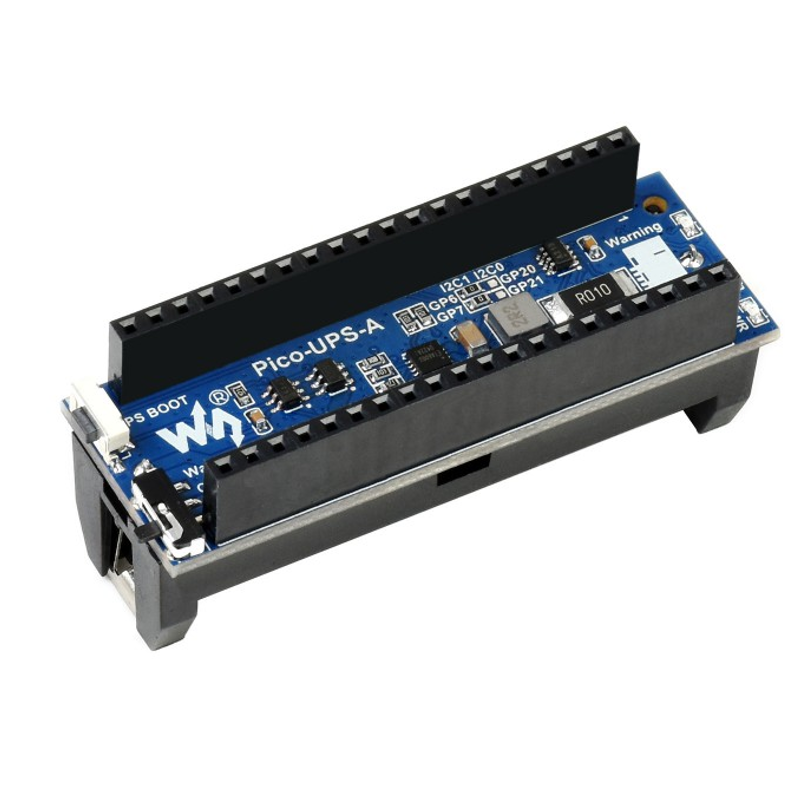

The Pico-UPS-A is a dedicated UPS (Uninterruptible Power Supply) module designed for Raspberry Pi Pico. It incorporates Li-ion battery switching charger with power path management, and voltage/current monitoring chip, allows monitoring the battery operating status via I2C bus.

  1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  2. Incorporates Li-ion battery switching charger with dynamic power path management, more stable power supply
  3. I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
  4. Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
  5. Onboard recharging indicator, power indicator, and battery warning indicator to check if the battery is connected correctly
  6. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)


Specifications

Recharge voltage 5V
Control bus I2C
Battery support 14500 Li-ion battery (NOT included)
Dimensions 60 × 21mm


Raspberry Pi Pico header compatibility

Onboard female pin header for direct attaching to Raspberry Pi Pico

Raspberry Pi Pico and Li-ion battery are NOT included.

What's On Board
  1. ETA6003
    recharger chip
  2. INA219
    voltage/current monitoring chip
  3. S8261
    Li-ion battery protection chip
  4. FS8205
    Li-ion battery protection MOS
  5. AO3400
    reverse-proof MOS
  6. SI2305
    counter current preventing MOS
  1. Rapsberry Pi Pico header
    for direct attaching to Raspberry Pi Pico
  2. Power switch
  3. Activate button
    activate the protection circuit after replacing battery
  4. 14500 battery holder


Pinout definition



Outline dimensions


Resources & Services



* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.



Package Content

Weight: 0.014 kg

  1. Pico-UPS-A x1
PCO01166
