• DESCONTINUADO

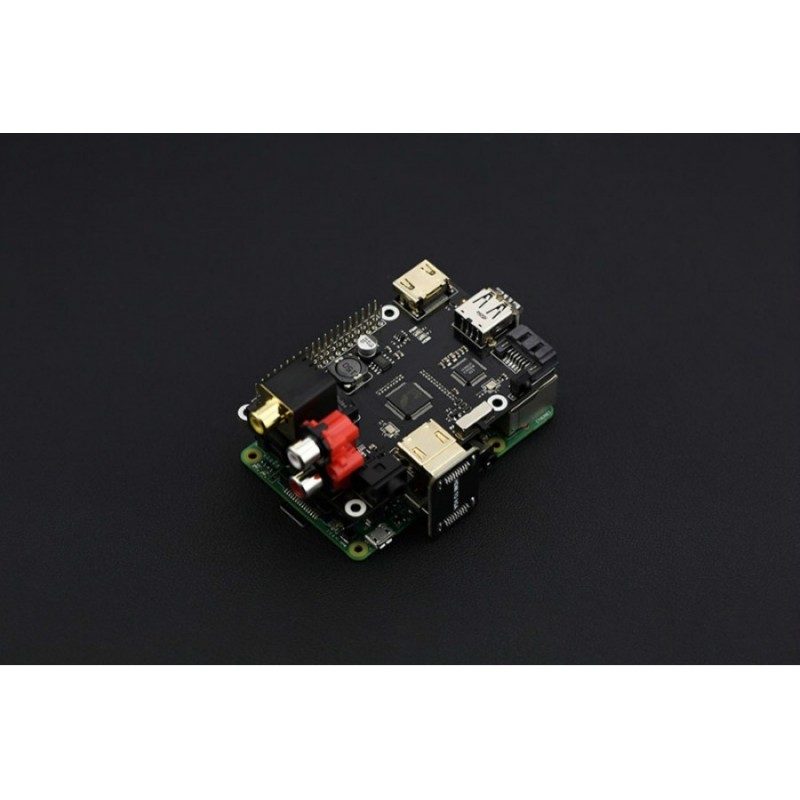

HAT Audio/Video e SATA x600 p/ Raspberry Pi B+/2B/3B

: PCO01077
49,90 €
preço com IVA incluído

A shield de expansão X600 é uma HAT multimídia altamente económica, compatível com a Raspberry Pi Modelo B +, Raspberry Pi 2 Modelo B e a mais nova Raspberry Pi 3 Modelo B/B+. Usa uma solução de áudio HDMI para proporcionar uma qualidade de som nítida de alta definição.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Note: Raspberry Pi is not included in the box.

It decodes and separates voices from HDMI signal, completely solving the poor quality problem with Raspberry Pi integrated sound card.

The hat supports digital audio 5.1 channel output and 2.0 channel analog audio output, supports Dolby digital AC-3, DTS, LPCM and other digital audio format outputs. Use your Raspberry Pi as a multimedia player, lossless audio player or a network radio. We recommend OS images such as Raspbian, Volumio, OSMC, PiMusicBox, etc.


Note: Raspberry Pi is not included in the box.

SPECIFICATION

  • Input Voltage
    • 6V to 20Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi and SATA device
  • Audio & Video
    • Allows you to extract audio signals from HDMI of your Raspberry Pi
    • Converts HDMI audio to digital optical or Coaxial or stereo RCA analog
    • The SPDIF optical or coaxial audio output supports all audio formats up to 5.1CH Dolby Digital 5.1CH / AC3 &     DTS 5.1CH audio
    • Extracts digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output  through its RCA style L/R analog output or earphone jack
    • Provides the Best Flexibility through Three NEW Audio EDID Settings: Pass, 2CH and 5.1CH
    • Maintains surround format when converting to digital optical audio
    • Supports high definition input up to 1080p@ (24/60) Hz, output resolution follows input
    • Supports HDMI signal amplification and equalization output for repeater function
    • HDMI output supports all audio formats including more advanced Dolby Digital Plus, PCM5.1CH and beyond
  • SATA
    • Allows you to connect SATA devices to your Raspberry Pi
  • Wireless
    • Built in IR sensor (38KHz)
  • Misc
    • Power output socket
    • Directly connected on top of the Raspberry Pi using the board GPIO header pins
    • Solderless and no wires required
    • Extra 40-pin header of the R-Pi in order to support existing expansion boards
    • Suitable for Raspberry Pi Model B+, Raspberry pi 2 Model B and Raspberry Pi 3 Model B NEW!
  • Dimensions
    • 85 x 56mm (Same size as Raspberry Pi)

DOCUMENTS



SHIPPING LIST

  • X600 expansion board x1
  • Nylon spacers (M3 x 20mm) x4
  • Nylon screws (M3 x 6mm) x8
  • USB adapter x1
  • HDMI adapter x1
