Servo 360º 20Kg

: MOT03019
19,95 €
preço com IVA incluído

Angulo de rotação: 360°,velocidade sem carga:60°/0.16s @7.4v, Binario :19.3kg.cm（7.4v) ,  Torque Dinâmico :15.1kg.cm（7.4v）

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

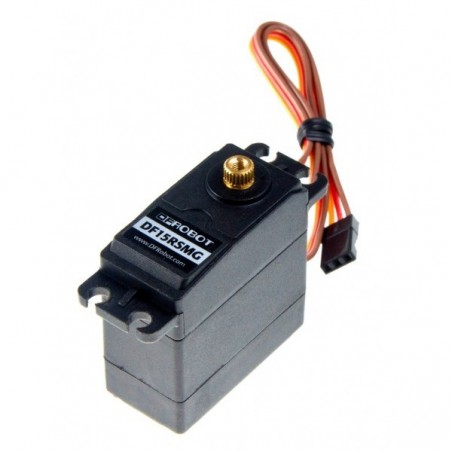

This is a most powerful standard servo sized motor from DFRobot so far. The DF15RSMG  equips with two pairs of the servo shells. One is a stardard shell with four M4 mounting holes. And the other one includes a shell with double bearing which is specially designed for the application of the robot arm or the joints.The shells of this kit are thickened to make it stable enough for motion system.

The torque of this motor is about 19kg.cm at 7.4v power supply.Using the Arduino servo library, you could drive this servo motor easily.To reduce the consumption of your microcontroller, this servo has a lock function for the pulse detection. So driving it to a target position just requires one PPM controlling signal.


Mechanical specification
  • Rotation angle range: 360°
  • No-load speed:60°/0.16s @7.4v
  • Stall torque:19.3kg.cm（7.4v）
  • Dynamic torque:15.1kg.cm（7.4v）
  • Gear:steel,copper mixed gear
  • Assembly method:fastening with double layer 4 screws
  • Equip 2 pairs of shells,2 metal servo horns and 2 servo support
  • Size: 40x40x20 (mm)

Electrical specification
  • Working Voltage: 5-7.4v
  • Stall current:3A(@8.5V - Limit test)
  • PPM Voltage:3V-5V
  • PPM Resolution:2us
  • PWM driver frequency:4KHZ
  • Range of PPM positive pulse width:400us-2550us
  • Minimum value of PPM negative pulse width:400us

Cable definition
  • Brown - GND
  • Red  - VCC
  • Orange  - Signal(PPM input wire)

Shipping List
  • DF15RSMG Servo    1 unit
  • Servo Shell            2 unit
  • Fitting package      1 unit




Código de exemplo Arduino:

Código de Exemplo para Arduino



MOT03019
