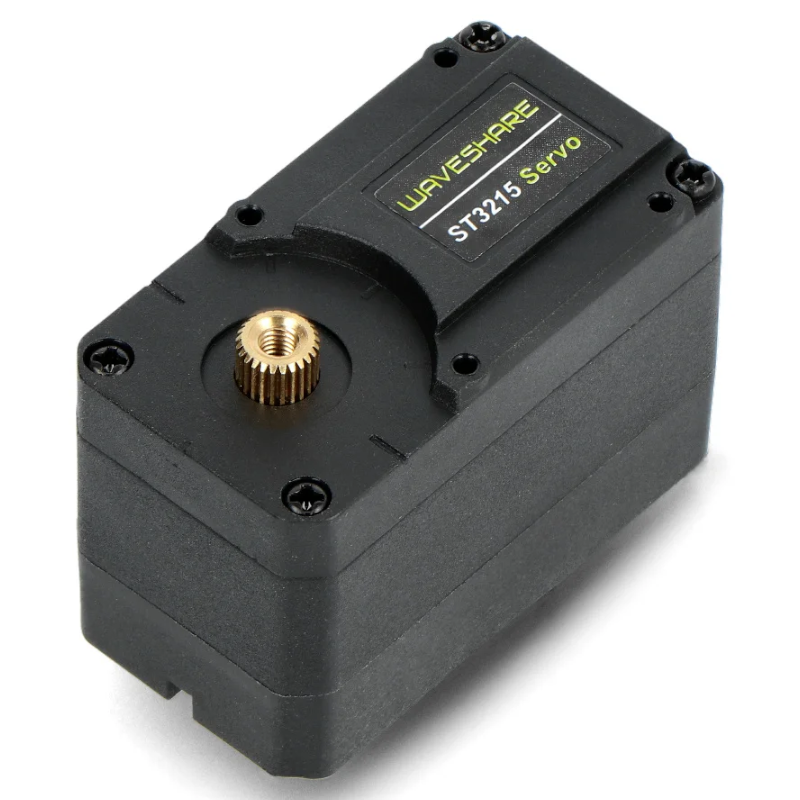

Servo ST3215 Série UART 30kg.cm@12V Metálico Brushless c/ encoder 360 magnético programável - Waveshare 22414

Specifications

Application Examples

1. Servos will provide various feedback like position, speed, torque lock, operating mode (servo mode, servo motor mode, etc.) for advanced projects requiring closed-loop automatic control.

2. Ideal choice for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servos. (This product provides the open source model of the quadruped robots as shown in the picture below.)

* images here are for reference ONLY

UART Serial Bus Control

Allows controlling up to 253 serial bus servos at the same time

Note: though one channel UART is able to control up to 253 serial bus servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos. For reference only, the servo driver board is NOT included.

Large Torque

Up To 30kg.Cm Torque On 12V Voltage, Suitable For Building Quadruped Robots, Hexapod Walkers, Robotic Arms And Other Robotic Projects Requiring Multiple Servos

* images here are for reference ONLY

360° Magnetic Encoder - High Precision, Longer Lifetime

Adopts 12-bit high-precision magnetic encoding angle sensor. Compared with the potentiometer, the angle is enlarged to 360°, and the resolution is increased by 4 times. Since there is a gap and no friction between the magnetic encoder and the radial magnet, the lifetime of the servo is effectively extended.

Acceleration Start-stop Function

The speed and acceleration values can be set, and the motion effect is softer

Actual Effect





Motion Effect Diagram

Compact Structure Design

The case adopts higher intensity engineering plastics, dual shaft and low profile design, shortening the plane spacing of the double-shaft servo wheel, and the overall structure is more compact, which can make the appearance of the product more beautiful.

One Button to Calibrate the Middle Position

360° installation at any position, one button to set the current position as middle position. Easy to install

1. In the default program, a hotspot will be created automatically after the servo driver board is turned on. Use your mobile phone to connect to this hotspot, open the browser, and enter the IP address to enter the control interface.





2. Click Release to unlock, then turn the servo to the middle position where you need to set







3. Click Set Middle Position then comfirm.







4. Turn the servo to any angle, then click Middle, and the servo will automatically return to the middle position initially set.

Two-Way Feedback

The Servos Will Provide Various Feedback Like Position, Load, Speed, And Input Voltage In Real Time

* images here are for reference ONLY

Dual Modes: Servo Or Motor

Precise rotation angle control on servo mode





Continuous rotation on motor mode

* images here are for reference ONLY

Details Introduction

Nylon and fiberglass case

Improved heat-resistance, size stability, rigidity, and mechanical performance





High strength aluminum servo wheels
Using T6061 aluminum alloy, good corrosion-resistance





High precision copper and steel gears
Ingenious combination of the two, lower operating noise, better stability and mechanical performance

Open Source Control Program

We provide the open-source web control demo of the servo driver board and a secondary development tutorial, which can be directly used for remote setting and remote control of the servo. At the same time, we also provide a 3D model for you to build your own project quickly

Outline dimensions

Resources & Services

---

WIKI: www.waveshare.com/wiki/ST3215_Servo



Package Content

Weight: 0.069 kg

1. ST3215 Servo x1
