Kit de Oxigénio Dissolvido - Atlas Scientific KIT-103D

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

If you are new to electrochemical sensing, knowing what components you need can get confusing. Let us help you.

The Atlas Scientific EZO-Dissolved Oxygen Kit gives you everything you need to take high accuracy, interference-free readings. Once you become familiar with electrochemical sensing, it will be easy for you to streamline your design and buy only the components that work for you.

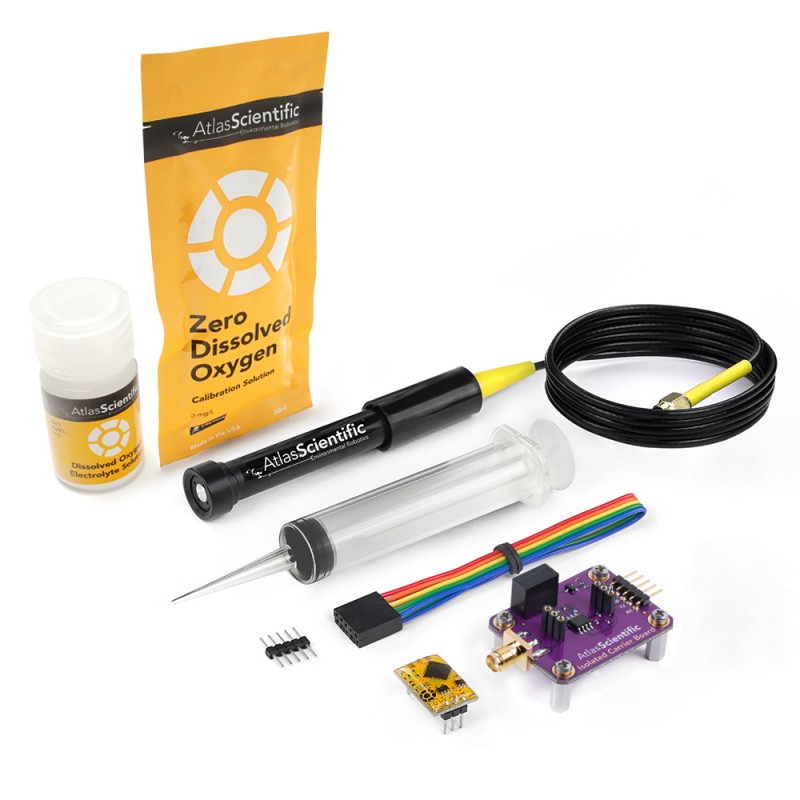

Kit Includes:

• 1x EZO™ Dissolved Oxygen Circuit
• 1x Lab Grade Dissolved Oxygen Probe
• 1x 30ml bottle of Electrolyte Solution
• 3x 20ml Zero Dissolved Oxygen calibration solution pouches (used to confirm that the D.O. probe is working properly)
• 1x Electrically Isolated EZO™ Carrier Board
• 1x Syringe

Carrier Board dimensions

• 56.2mm x 32mm (2.2″ x 1.2″)
• Weight: 25 grams

Features:

• Range: 0-35 mg/l
• Body Material: Epoxy and Noryl (highly resistant to corrosion)
• Max Temperature: 50 °C
• Calibration Single point in air
• Cable length: 1 Meter
• Dimensions: 16.5 x 116 mm (0.65" x 4.57")
• Response time: 0.06 mg/l per second

Documents:

• EZO™ Dissolved Oxygen Circuit Datasheet
• Lab Grade Dissolved Oxygen Probe Datasheet
• Electrically Isolated EZO™ Carrier Board Datasheet
• Wiring Diagram
• Arduino Uno Sample Code
• Arduino Mega Sample Code
• Arduino I2C Sample Code
• Raspberry Pi Sample Code (UART, I2C, USB)
• Connecting probes into a pipe
• How to properly cut your probe cable
• Dissolved Oxygen. CAD Footprint File (*.dxf)
• Dual Probe Holder - 3D printer file
• Product Page
