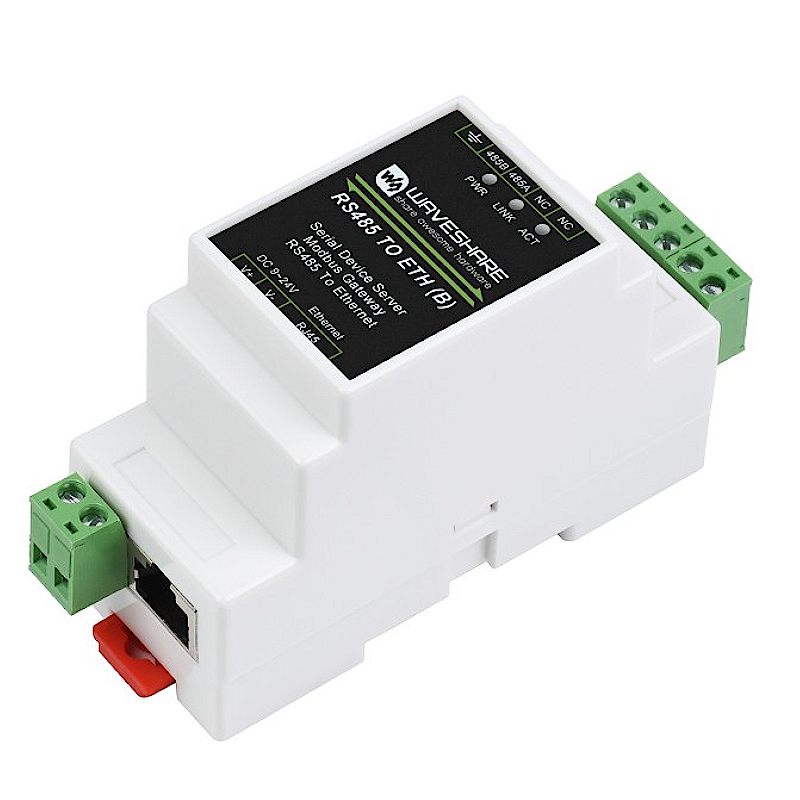

CONVERSOR RS485 PARA ETHERNET, MODBUS GATEWAY, SERVIDOR - Calha DIN

: COM03022
29,70 €
preço com IVA incluído

Este módulo é capaz de desempenhar várias funções, podes usa-lo como um servidor, uma gateway ou até mesmo aplicar a comunicação MODBUS neste conversor. Este produto possui portas RS485 e Ehternet e suporta tensões entre os 9V e os 24V.

Para teres acesso ao manual de ulitizador e outras informações consulta a Wiki Page deste produto.



Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

RS485 To RJ45 Ethernet Module

Rail-mount RS485 serial server



Features At A Glance

This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet ports, uses screw terminals for power input, supports 9~24V wide range power supply. Rail-mount flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...



Specifications

OUTLINE

Communication interface

RS485, screw terminal, supports 32x slave devices

Power supply

9 ~ 24V DC, screw terminal

Dimensions

L × W × H: 87 × 36 × 59 mm

COMMUNICATION

Ethernet

10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection

Serial port

RS485 × 1: RXD, TXD, GND

SERIAL SPECIFICATION

Baudrate

300 ~ 115200 bps

Parity bit

none, odd, even, mark, space

Data bit

5 ~ 9 bits

Flow control

N/A

SOFTWARE

Protocol

ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS

Configuration

host, web browser, device management functions library

Communication method

TCP/IP direct communication, VCOM

Operating mode

TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast

ENVIRONMENT REQUIREMENT

Operating temperature

-40℃ ~ 85℃

Storage temperature

-45℃ ~ 165℃

Humidity range

5% ~ 95% relative humidity



Primary Function

Bi-Directional Transparent Data Transmission Between RS485 And Ethernet



Rail-Mount Support

Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely



Modbus Gateway Support

Suitable For Modbus Gridding Upgrade, Can Be Used With 3D Configuration Software



Multi Communication Modes

Supports TCP Server / TCP Client / UDP Mode / UDP Multicast

RS485-TO-ETH-B-details-9.jpg RS485-TO-ETH-B-details-11.jpg


MQTT/JSON To Modbus

More Flexible Conversion Between Different Protocols


When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.



Multi Hosts Roll-Polling Support

Different Network Devices Will Be Identified And Responsed Respectively,
No More Crosstalk Issue While Communicating With Multi Network Devices




User-Defined Heartbeat/Registration Packet

Easy For Cloud Communication And Device Identification



NTP Protocol Support

Getting Network Time Info For Serial Output Or Data Upload



Multi Configuration Methods

Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP,
DNS Protocol Connected Domain Server Address



Interface Introduction



Outline Dimensions

Resources & Services



Selection Guide



UART TO ETH

RS485 TO ETH

RS485 TO ETH (B)

RS485 TO WIFI/ETH

RS232/485 TO ETH

2-CH-UART-TO-ETH

ETHERNET

RJ45 Ethernet

10/100Mbps auto-negotiation

WIFI interface

-

802.11b/g/n 2.4GHz

-

UART

Type

UART

RS485

RS232+RS485 (allows concurrent operation)

UART

Baudrate

600bps~460.8Kbps

600bps~230.4Kbps

300bps ~ 115.2Kbps

300bps ~ 460.8Kbps

600bps~230.4Kbps

300bps~921.6Kbps

Hardware flow

NOT supported

supported

NOT supported

Data bit

5, 6, 7, 8

Stop bit

1, 2

Parity bit

None, Even, Odd, Space, Mark

INTERFACE PROTECTION

Power supply

reverse-proof, ESD protection, anti-surge

Ethernet

1.5KV electromagnetic isolation

RS485

-

2KV ESD protection, 2.2KΩ pull up/down registers

2KV anti-surge

anti-surge, lightningproof, over-current protection

2KV ESD protection, 2.2KΩ pull up/down registers

-

Other

-

-

-

-

lightningproof, over-current protection

-

OPERATING MODE

Type

TCP Server, TCP Client, UDP Server, UDP Client, etc.

TCP Server

customizable 1~16 Clients

supports 30 Clients

supports 24 Clients

supports 2-ch Socket, 8 Clients per ch

customizable 1~16 Clients

MISC

Features

customized heartbeat packets, customized registration packets, customized webpage, RFC2217-like protocol, KeepAlive, timeout auto reboot, short connection, firmware upgrade via network

KeepAlive, firmware upgrade via network

-

-

Modbus gateway, MQTT/JSON to Modbus

Modbus gateway, MQTT, HTTP Client

Modbus gateway, Websocket (webpage to serial)

-

Configuration

Built-in webpage, Host computer config software, Serial commands

Host computer config software, Serial commands

Power supply

3.3V/5V

5~7V

9~24V

5~36V

3.3V/5V

Operating current

150mA@5V

110mA@5V

TBD

127mA@5V

86.5mA@5V

140mA@5V

Operating temp.

-25～75℃

-40～85℃

Storage temp.

-40～105℃

-40～125℃

-55℃~125℃

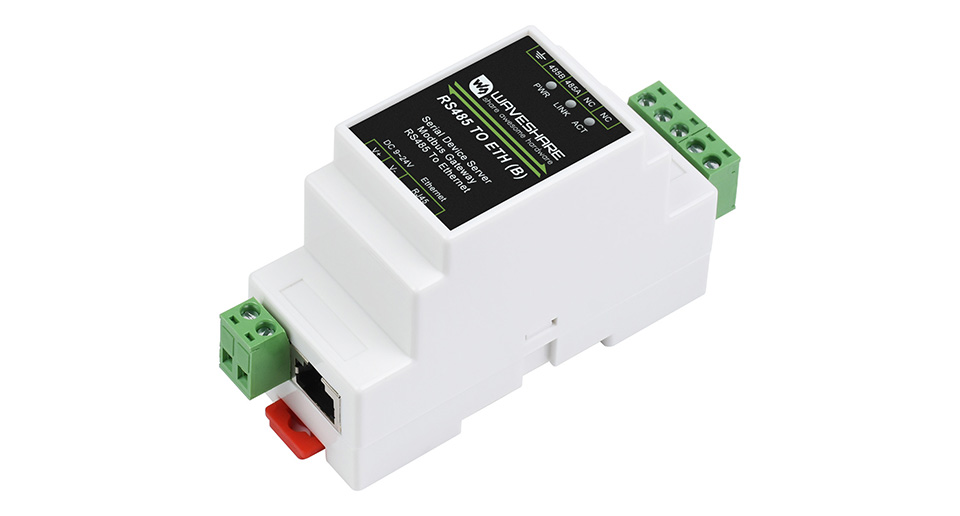

 Package Content

Weight: 0.077 kg

Power supply is not included, it is recommended to use a 12V Industrial DIN-Rail Power Supply
  1. RS485 TO ETH (B) x1




COM03022
