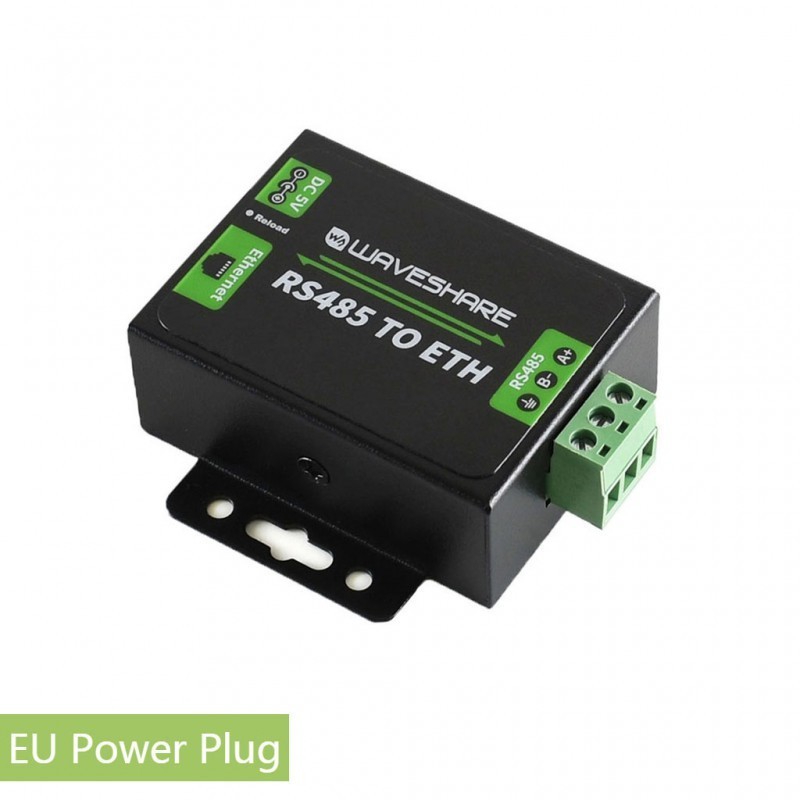

Conversor RS485 para Ethernet c/ Alimentador 5Vdc
: COM03018
27,90 €
preço com IVA incluído
O módulo RS485 TO ETH oferece uma maneira fácil de comunicar entre as portas RS485 e Ethernet RJ45, podendo ser configurado via página WEB.
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.
Comes with EU plug power adapter.
Overview
The RS485 TO ETH module provides an easy way to communicate between RS485 and RJ45 port Ethernet, it can be configured via webpage.
Features
- M0 series 32-bit ARM processor, fast speed, high efficiency
- 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
- Configurable RS485 baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
- Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
- Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
- Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
- Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
- Supports customized webpage, allows user to customize the module configuration page
- Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
- KeepAlive mechanism, detects broken connection, auto re-connecting
- Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
- Supports DNS domain name resolution, configurable DNS server
- Supports DHCP, auto-obtained IP or static IP
- Firmware is upgradable via the network
- Restore to factory settings via software and/or hardware
- Comes with default MAC address, which is customizable
- Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
- Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.
Specifications
- Ethernet:
- Connector: 4-pin RJ45
- Communication rate: 10/100Mbps
- Interface protection: 1.5KV electromagnetic isolation
- Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
- TX cache: 6Kbyte
- RX cache: 4Kbyte
- RS485:
- Connector: screw terminal (A+, B-, GND)
- Data bit: 5bit, 6bit, 7bit, 8bit
- Stop bit: 1, 2
- Parity bit: None, Odd, Even, Mark, Space
- Baudrate: 600bps~230.4Kbps
- RX cache: 800byte
- Hardware flow control: none
- Interface protection:
- 2KV ESD protection
- RS485 pull up/down registers: 2.2KΩ
- Power:
- Power supply: 5.0~7.0V (5V recommended)
- Operating current: 150mA (@5V)
- Power consumption: <1W
- Interface protection: reverse-proof, ESD protection, anti-surge
- Environment:
- Operating temperature: -25~75°C
- Storage temperature: -40~105°C
Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/RS485_TO_ETH
Selection Guide
COMPARISON | UART TO ETH | RS485 TO ETH | RS232/485 TO ETH |
---|---|---|---|
Processor | Cortex-M0 | Cortex-M0 | Cortex-M4 (up to 120MHz frequency) |
Ethernet | RJ45 (10/100Mbps self-negotiation) | ||
Protocol: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client | |||
Cache: TX 6Kbyte, RX 4Kbyte | Cache: TX 16Kbyte, RX 16Kbyte | ||
Serial | UART | RS485 | RS232+RS485 (allow to work at the same time) |
Baudrate: 600bps~460.8Kbps | Baudrate: 600bps~230.4Kbps | ||
Hardware flow: NOT supported | Hardware flow: supported | ||
Data bit: 5, 6, 7, 8 | |||
Stop bit: 1, 2 | |||
Parity bit: None, Even, Odd, Space, Mark | |||
Cache: RX 800byte | Cache: TX 2Kbyte, RX 2Kbyte | ||
Framing condition: 4 byte time interval, or 400 byte in length | Framing condition: 4 byte time interval, or customizable 0~1460 byte in length | ||
Features | customized heartbeat packets, customized registration packets, customized webpage, RFC2217-like protocol, KeepAlive, timeout auto reboot, short connection, firmware upgrade via network | ||
Modbus gateway, Websocket (webpage to serial) | |||
Working Modes | TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client | ||
Client Count | on TCP Server mode, customizable 1~16 Clients | on TCP Server mode, supports 2-ch Socket, 8 Clients per ch | |
Configuration | Built-in webpage, Host computer config software, Serial commands | ||
Interface Protection | Power: reverse-proof, ESD protection, anti-surge | ||
Ethernet: 1.5KV electromagnetic isolation | |||
RS485: 2KV ESD protection, 2.2KΩ pull up/down registers | |||
lightning-proof, over-current protection | |||
Power Supply | 3.3V/5V | 5~7V | 5~36V |
Operating Current | 150mA@5V | 110mA@5V | 86.5mA@5V |
Temperature | Operating Temperature: -25~75℃ | Operating Temperature: -40~85℃ | |
Storage Temperature: -40~105℃ | |||
Dimensions | 50.5mm × 22.6mm × 15mm | 70mm × 63.6mm × 25mm | 82.8mm × 85.7mm × 25mm |
Package Content
Weight: 0.225 kg
- RS485 TO ETH x1
- 5V power adapter (EU plug) x1
