Conversor USB RS232 de 4 canais, isolado para ambiente Industrial (Conector RS232 macho) - Waveshare 26854

Referência : COM03032

38,90 €

preço com IVA incluído

USB TO 4CH RS232 é um conversor industrial USB para RS232 isolado, com o FT4232HL original. Possui circuitos de proteção integrados, tais como isolamento de energia incorporado, isolamento magnético ADI e díodo TVS. Com uma caixa em liga de alumínio, o USB TO 4CH RS232 oferece uma operação simples, uma conversão automática de transmissão e receção sem atraso e possui ainda outras características como comunicação rápida, estável, fiável e segura, adequada para aplicações de controlo industrial com vários requisitos de comunicação.

Esta versão contém conectores DB9 machos. Se quiseres saber mais sobre este produto, consulta aqui a sua Wiki Page.

Descrição

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Industrial Isolated USB Converter

FT4232HL | Stable transmission | Multiple devices applicable | Multi-OS compatible

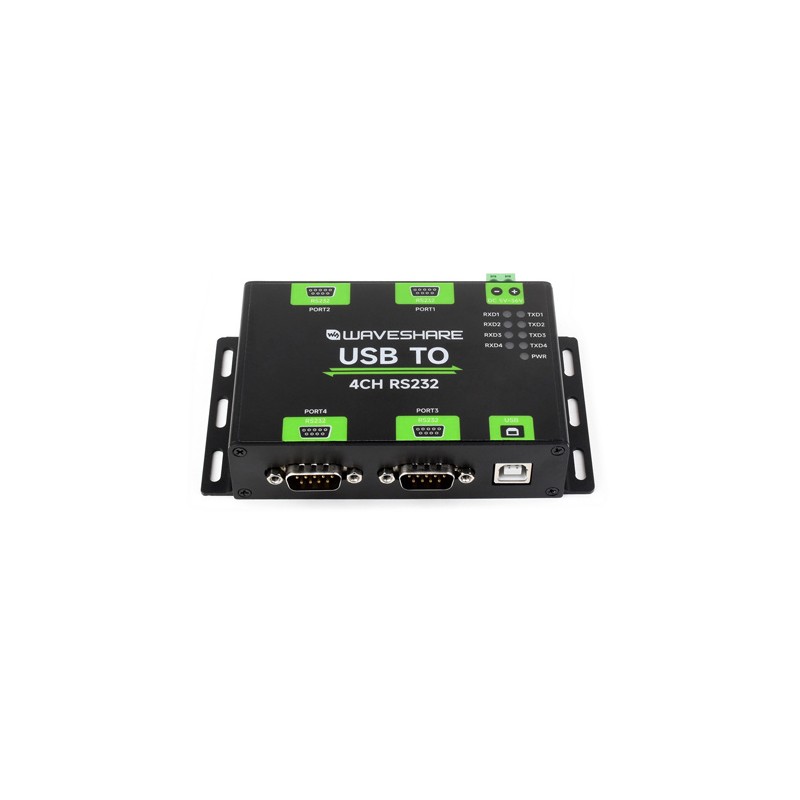

USB To 4-ch RS232 module, front view

Features At A Glance

Adopts original FT4232HL chip, fast communicating, stable and reliable, better compatibility
Supports USB to 4-ch isolated RS232, convenient for expanding multiple RS232 industrial serial devices
Onboard unibody power supply isolation, provides stable isolated voltage
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance
Onboard power supply screw terminal, allows 5V~36V DC wide range input
9 LEDs for indicating the power and transceiver status
Aluminum alloy enclosure with sand blasting and anodic oxidation, solid and durable

Specifications

PRODUCT TYPE	Industrial USB to RS232 isolated converter
Host port	USB
Device port	RS232
Baud rate	300bps ~ 921600bps
USB	Operating voltage	5V
	Connector	USB-B
	Protection	200mA self-recovery fuse, isolated output
	Transmission distance	about 5m
POWER SUPPLY INTERFACE	Power supply	5~36V DC screw terminal
POWER SUPPLY INTERFACE	Protection	Anti-reverse
isolated RS232	Connector	DB9 male/female
	Protection	TVS diode, surge protection & ESD protection, power isolation and signal isolation
	Transmission mode	Point-to-point
	Transmission distance	about 15m
Indicators	PWR	Red power indicator, lights up when there is USB connection and voltage is detected
	TXD1~4	Green TX indicator, blinking when the RS232 port is sending data
	RXD1~4	Blue RX indicator, blinking when the RS232 port is receiving data
Operating environment	Temperature range	-40℃ ~ 85℃
Operating environment	Humidity range	5%RH~95%RH
Operating system	MacOS, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7

Original Industrial Grade Chip

Onboard original FT4232HL chip, Fast communication, stable & reliable, better compatibility

USB TO 4CH RS232 module, onboard original FT4232HL chip

Safer Isolated Design

Onboard unibody power supply isolation, provides stable isolated voltage
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

USB TO 4CH RS232 module, inside components

Multiple Protection, Safe And Stable

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance.
