• Novo

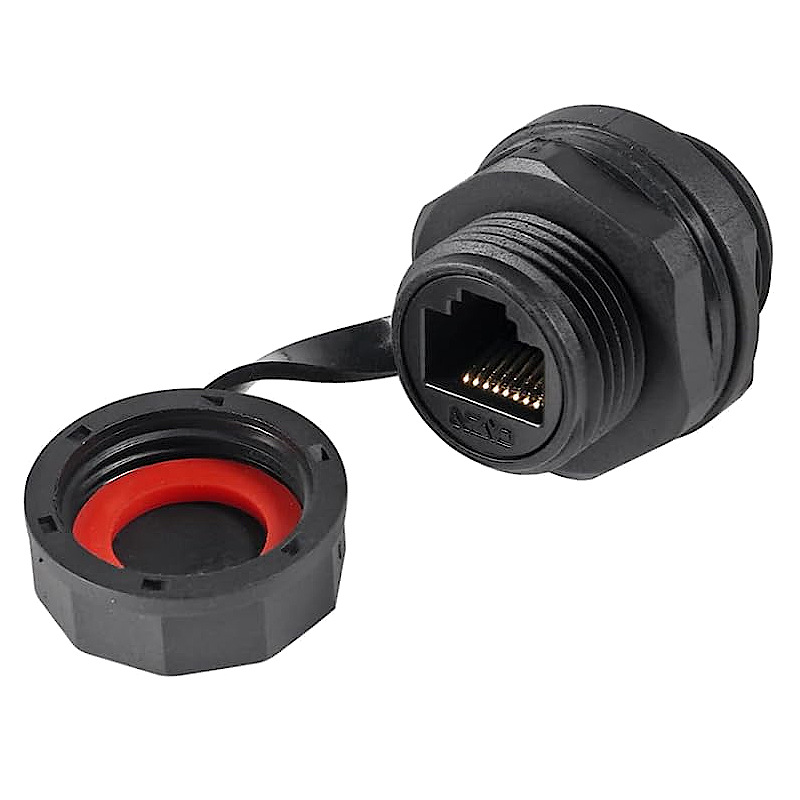

Conector Industrial Ethernet RJ45 CAT6 de painel com tampa à prova de água

:CON05024
4,50 €
preço com IVA incluído

Acopladores CAT6 de montagem em painel RJ45 fêmea para fêmea, ligando dois cabos para prolongar o comprimento do cabo existente para uma acomodação ideal.

Cumpre a proteção contra água IP67. Não é à prova de água sem tampa de água/poeira.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

4

n

Product Feature

Good performance: 8-pin 6fu gold plating, good contact, fast network speed, compatible with CAT5/CAT5E/CAT6.

Good protection: New edition water/dustcap, IP67 Waterproof/Dustproof, provides a solution for broadband data transmission in harsh environments.

Safe and reliable: Conform to TIA/EIA 568B and ISO/IEC 11801 standards， tensile, impact and vibration resistance, safe and reliable.

Convenient connection: There is no need for welding and installation tools. The crystal head can be inserted directly to realize rapid installation.



PENGLIN Shielded IP67 Waterproof Ethernet Connector Pass Through

Female to Female RJ45 Panel Mount CAT6 Couplers, Connecting Two Cables to Extend the Length of Existing Cable For Optimal Settlement.

Meets IP67 Water Protection. It is not waterproof without water/dust cap.

Standard RJ45 international installation port, can be installed in a fixed position, suitable for 86 panels, ground plugs, wall plugs, desk plugs.

RJ45 CAT6 connectors can apply for industrial ethernet in business, amusement, live stage action, industrial and outdoor in network environments.

Package Included

  • 5x M21 RJ45 CAT6 Socket
  • 5x IP67 Water/Dustcap

·

1

1

ANTI-INTERFERENCE

The inner pins is copper with gold-plated for better electronic conductivity, at the same time with a 0.25mm thick copper alloy shielding layer, this connector can pass a clean signal, don’t worry about signal loss.

IP67 WATERPROOF

The Waterproof RJ45 Connector are IP67 Compliant. Water/dustcap provide a perfect waterproof /dust-proof, prevent the network parts from moisture, dirt rain&snow and insects for quality connections.

PLUG AND PLAY

No software or driver required.

Gold-plated contacts improves the signal transmission.

product specs.jpg

CON05024
