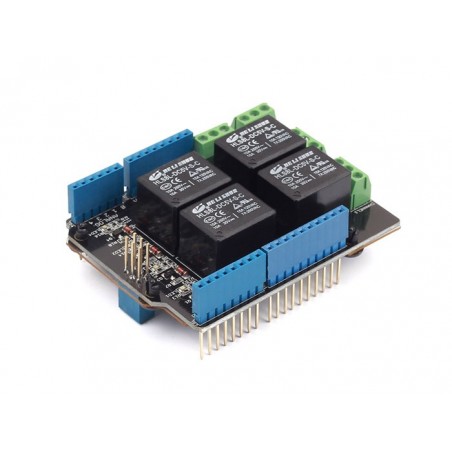

Shield Relé V3.0

: ARD03063
24,50 €
preço com IVA incluído

The Relay Shield utilizes four high quality relays and provides NO/NC interfaces that control the load of high current.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos



Note: Headers of this product is shipped unsoldered.



Features:
  • Arduino/Seeeduino compatible
  • Standardized shape design
  • Working status indicators for each relay
  • High quality relays
  • Provides NO/NC interfaces

Specification:


CHANNEL1 Interface:
COM1- Common pin
NC1- Normally Closed. Will be connected with COM1 when RELAY1 pin is set low and disconnected when RELAY1 is high;
NO1- Normally Open. Will be connected with COM1 when RELAY 1 pin is set high and disconnected when RELAY1 is low;
4 Digital Pins to control 4 Relays: RELAY1-RELAY4 pins could be connected directly with Arduino pin number of 7-4, so that four relays could be easily controlled by the Arduino

Documents:
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
