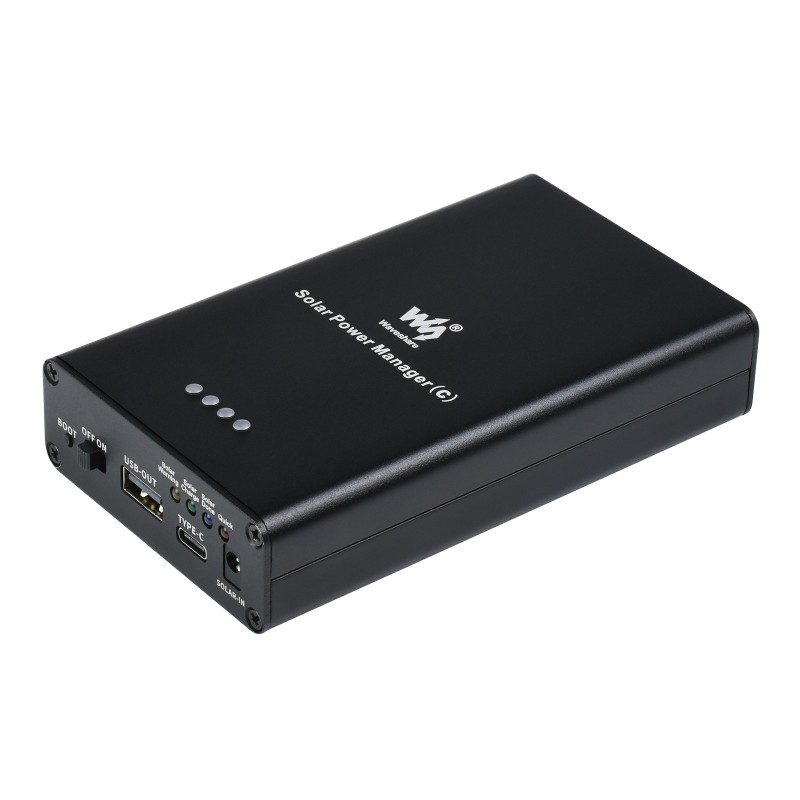

Gestor de Energia Solar (C) para 3x baterias 18650

Referência : FAL09037

21,40 €

preço com IVA incluído

Este gestor de energia solar é uma maneira simples de dar uso aos teus painéis. Compatível com painéis entre os 6 e os 24V este dispositivo pode carregar baterias Li-Ion. Com saída USB tipo C que fornece 5V e 3A, podes carregar o teu telemóvel, LCD, etc..

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

Descrição

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

SAFETY CAUTIONS

Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
Do not mix use old batteries with new ones, avoid using batteries of different brands.
When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.

Product features

The Solar Power Manager (C) is compatible with general 6V~24V solar panels. It can recharge the 18650 rechargeable Li-ion batteries through solar panel or USB TYPE-C connection, and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP).

The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep operating with high-efficiency, stability, and safety. It is suitable for solar powered, low-power IoT, and other environmental protection projects.

Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
Flexible battery recharging: from solar panel or USB TYPE-C power adapter
Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input
Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency
Onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
Embedded battery holder, supports 3x 18650 rechargeable Li-ion batteries
Several LED indicators, for monitoring the status of solar panel and battery
Multi protection circuits: over charge / over discharge / reverse-proof / over heat / over current, stable and safe to use

Supports 6V~24V solar panels

5-level voltage switch, for setting solar panel input voltage to improve efficiency

3x 18650 batteries support

Embedded battery holder for rechargeable Li-ion batteries

DO NOT put any non-rechargeable battery, like dry cell, into the battery holder. Serious consequences including explosion may occur if you try to charge a non-rechargeable battery.

Application example

solar-powered control system for MCUs / development boards like:
Raspberry Pi / Jetson Nano / Arduino...

for reference ONLY, the Raspberry Pi, display, solar panel are NOT included.

More possibilities

Suitable for mini solar road lamp, intelligent agriculture, or IoT applications

Resources introduction

Solar panel input
recharging through DC-002 jack or screw terminal
TYPE-C recharging/output port
supports 5V power adapter for recharging
supports PD protocol quick charge adapter
supports PD/QC/FCP/PE/SFCP multi protocols output
USB output port
5V/3A regulated output
supports PD/QC/FCP/PE/SFCP multi protocols output

Battery on/off switch
BOOT button
Quick charge indicator
Solar panel status indicators
Solar Warning: lights up if solar panel is reversed
Solar Charge: lights up when recharging from solar panel
Solar Done: lights up when the battery is fully recharged
Battery life indicators
