C8051 Emulador / Downloader / Debugger JTAG / C2 Hualong official

: CEL04019
19,95 €
preço com IVA incluído

Este U-EC6 é um programador / debugger de microcontroladores 8051 entre outros.

Compatível com diversos softwares como Keil, Silabs IDE, IAR, entre outros e suporta as seguintes funções: single step, continuous single step, breakpoint, stop / run, bem como inspecção e alteração de registos de memória.

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description:

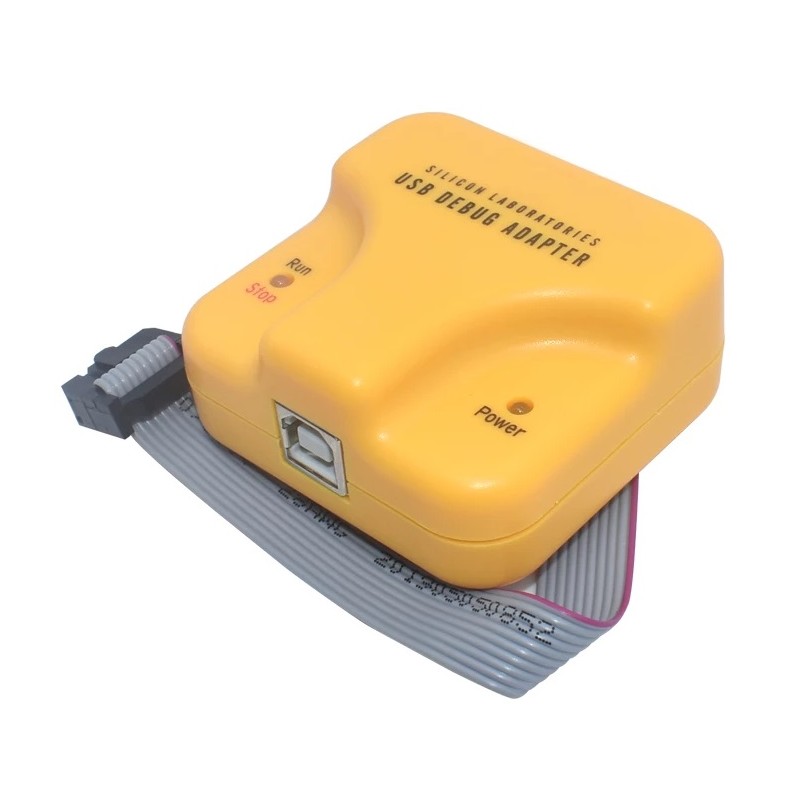

U-EC6 ( officially called USB Debug Adapter ) is a C8051F MCU 's USB port debugger. It can be used for microcontroller simulation, debugging, downloads, encryption and support for C8051F full range Microcontrollers.

  • Support Keil, SilabsIDE, IAR and other IED software. Hualong support for new software, as well as various other software Silabs introduced, such as FLASH Utility Programmer, Product Programmer and so on.
  • Can achieve single -step, continuous single step, breakpoint, stop / run, supports inspection and modification of registers and memory.
  • Stand by JTAG And C2 Mode debugging, support for up to four breakpoints. In the new version of Keil and drive with support for up to five breakpoints.
  • When using the C2 interface, you can only use two lines (C2CK, C2D), very convenient.
  • Firmware upgradeable , HID device driver-free, plug and play.
  • Dual output BUFFER, Strong protection for the debugger, very stable.
  • Support WIN XP, WIN7.



Interface definition as the official standard version :

1

NC

2

GND

3

GND

4

TCK / C2D

5

TMS

6

TDO

7

TDI / C2CK

8

NC

9

GND

10

5V 500mA



 Pinout

CEL04019
