Placa Expansão Micro:Bit para BreadBoard c/ USB Tipo-C

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

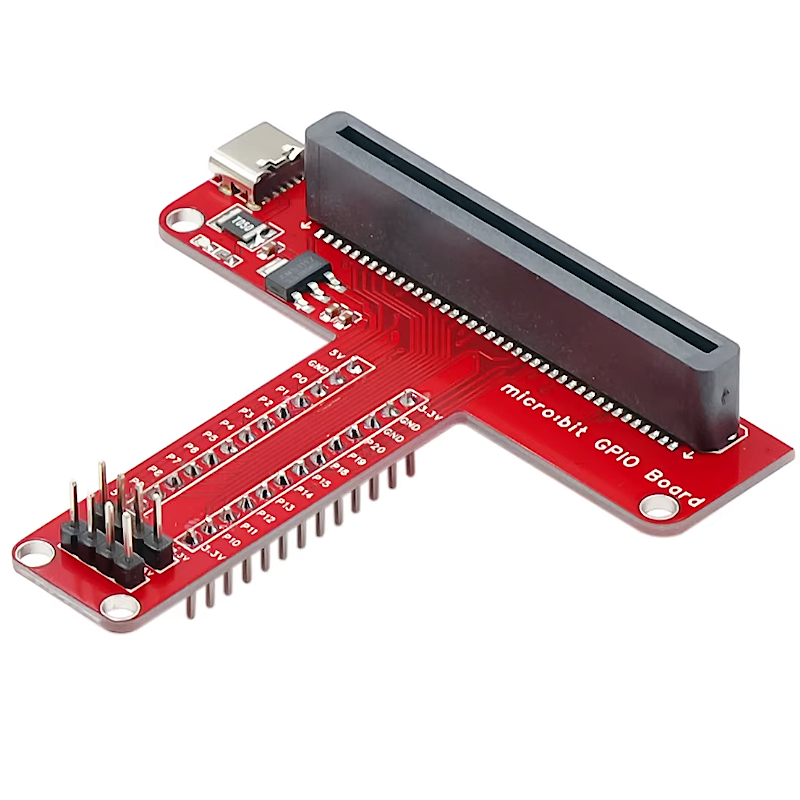

Micro:Bit T-Shape GPIO Expansion Board, an easier no fuss way to connect all compatible sensors.

Since the advent of the micro:bit, it has paved the way for a practical way of programming and is widely loved for its' simplicity by students and teachers alike. But it's very inconvenient to use all the GPIO pins on the board with only alligator clips.

This breadboard compatible GPIO expansion board, expands all the pins on the Micro:Bit along with UART, I2C and 3.3VDC power supply. You can simply place the expansion board onto the breadboard and connect your desired input-output devices.

This board also supports 5VDC logic devices and will bring the voltage down so it does not damage the Micro:Bit. Using this expansion board you can connect all type of Arduino sensors to Micro:Bit. It comes with a USB Type-C connector which supports up to 5VDC and directly powers the Micro:Bit at a regulated voltage of 3.3VDC.

Specifications:

1. Input voltage: 3.3 to 5VDC

2. Connection type: 0.1 inch space headers

3. Compatible with breadboard

4. Mounting holes: M3
