Placa de Expansão V2 com Breadboard para Micro:bit - Keyestudio KS0307

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

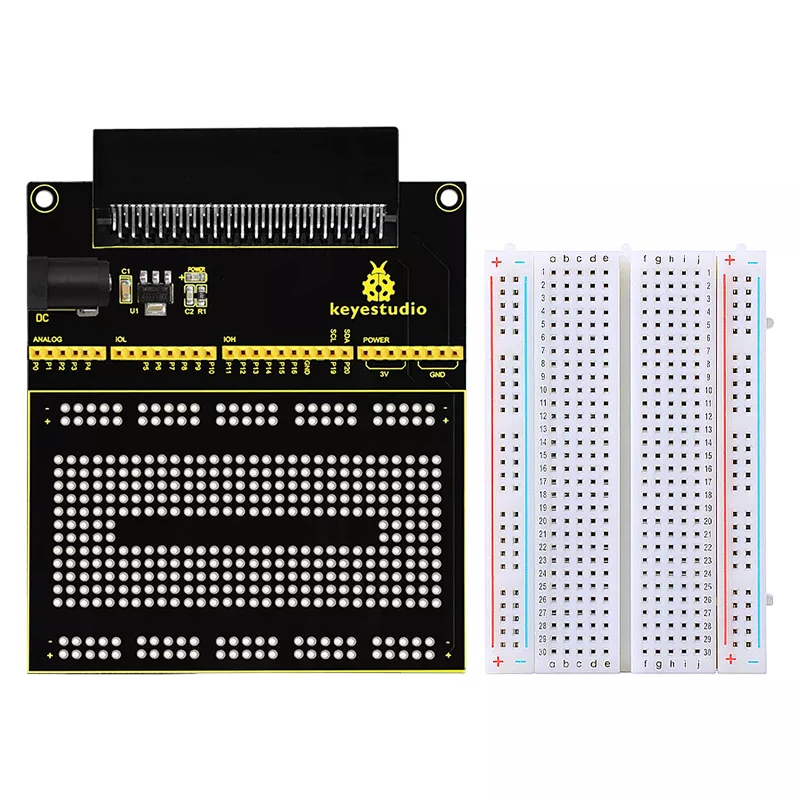

Keyestudio prototype breakout board V2 is specially designed for Micro bit motherboard. It breaks out all the pins of micro:bit in the form of female headers, very convenient for the circuit building. The breakout board has a number of circular weld holes and an external black power jack.
The product also contains a 400-point breadboard.
You can not only build the test circuit on the 400-point breadboard, easy to modify, but also can weld the design circuit directly on the prototyping panel of breakout board.
What’s more, a power module is integrated on the breakout board, which can directly power for the micro:bit board and increase the load capability of breakout board.
The whole design is very easy to use, a good choice for you to add circuit prototype.



Features

1. Micro bit compatible, plug and play;

2. Accurate label and simple appearance;

3. Break out the female headers on the board, easy for wiring;

4. Able to build your test circuit on the welding hole panel;

5. Integrated a power module on the board, convenient for powering micro bit;

6. With delicate breadboard 400-point, removable and easy to stick.

7. Power Input：5~9V

Package Content

1. KS0307 keyestudio Prototype Breakout Board V2
2. 400-point Breadboard

Documents

Wiki Page
