Expansão micro:bit - RJ11 EASY Plug - Keyestudio KS0496

Note: Cable not included

Overview

Micro bit is a basic development board designed by BBC for teenagers programming education. It supports the PXT graphical programming interface developed by Microsoft, and can be used under Windows, macOS, IOS, Android and multiple operating systems, moreover, an additional compiler isn’t needed to be download.

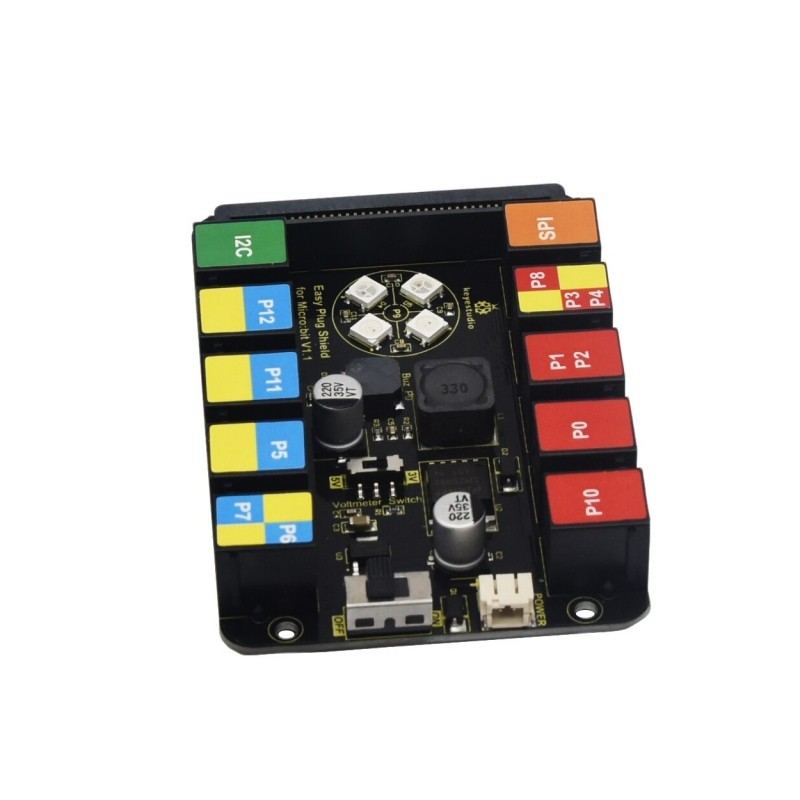

Doing experiments with micro bit board, we particularly design EASY Plug Shield for micro bit V1.1 to make up the problem of wiring. You only need to insert the micro bit board into shield.

We can connect micro bit control board with sensor modules via golden finger interface on the shield, as well as 10 EASY plug interfaces, that is, the RJ11 6P6C interface.

Connecting EASY plug interface to other modules with via one special telephone line (RJ11 crystal head), which doesn’t make you worry about the issue of damaging the sensors and wiring wrong or reverse line.

Meanwhile, this shield comes with 4 WS2812 LEDs (controlled by P9), 1 buzzer (controlled by P0), 2 DIP switches and power_Switch  controls power. Voltmeter_Switch is for controlling the voltage of V end (3.3V and 5V)on the EASY plug.

When electrified, the 2.0mm gray and white anti-reverse ports are connected, the supply power is DC 6-10v.

They can match with sensors/modules we provide with RJ11 6P6C ports. If the wiring order is different but with same interfaces , they still aren’t compatible.

Parameter:

Power: DC 6-10V
Output current: 1.5A
Interface: RJ11 6P6C interface and golden finger interface
Size: 98 * 65 * 17mm

​
