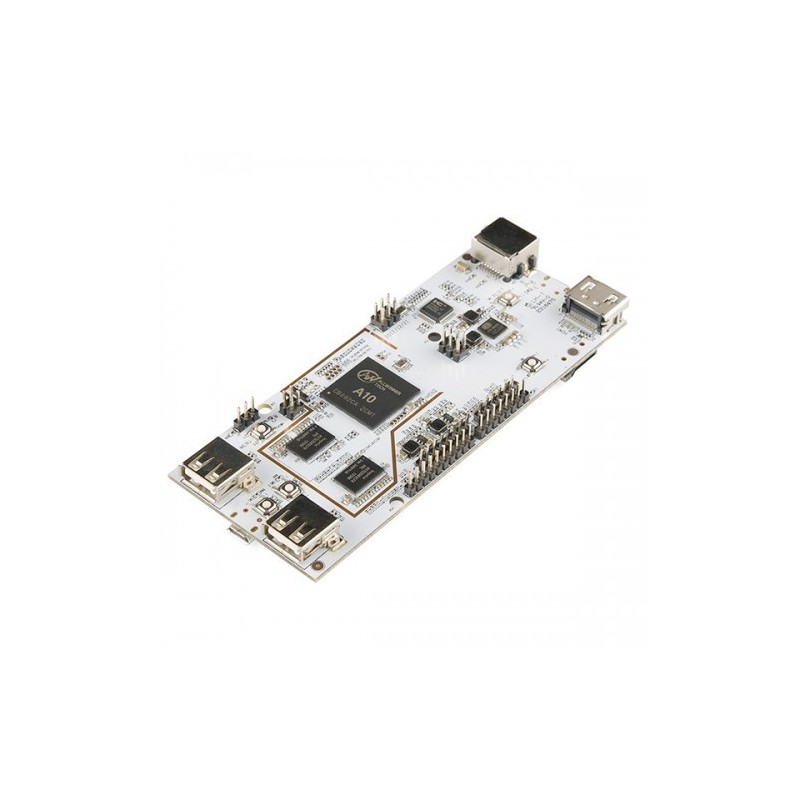

pcDuino V2 is a mini PC platform that runs PC like OS such as Ubuntu and Android ICS. It outputs screen to HDMI. Moreover, it has hardware headers interface compatible with Arduino.
Dimensions:
Features:
- 1GHz ARM Cortex A8 CPU
- GPU: OpenGL ES2.0, OpenVG 1.1 Mali 400 core
- 1GB DRAM
- Onboard Storage: 4GB Flash, microSD card (TF) slot for up to 32GB
- Arduino-Style Peripheral Headers (Adapter Needed for Shield Form-Factor)
- HDMI Video Output
- Linux3.0 + Ubuntu12.04 and Android ICS 4.0 Supported
- 0.1" Spaced GPIO Headers
- RJ45 Ethernet Connection
- Power Requirements: 2A @ 5VDC
- API to access the following interfaces:
- UART
- ADC
- PWM
- GPIO
- I2C
- SPI
- Program in C, C++ with GNU tool chain
- Program in Java with standard Android SDK
