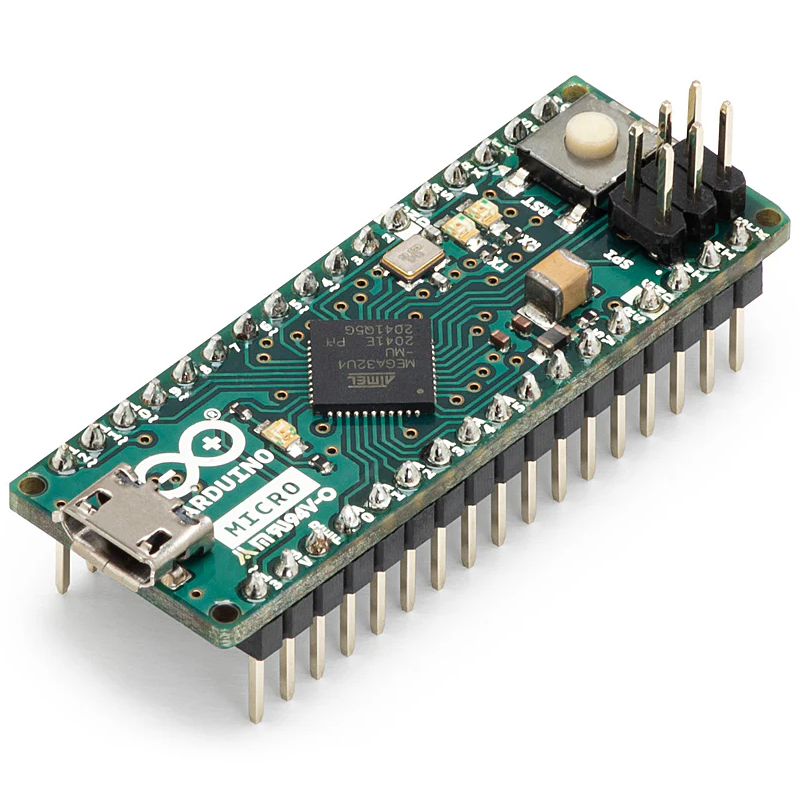

Arduino Micro c/ headers soldados - Arduino A000053

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

The Micro is a microcontroller board based on the ATmega32U4, developed in conjunction with Adafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.

The Micro board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

Related Boards

If you are looking at upgrading from previous Arduino designs, or if you are just interested in boards with similar functionality, at Arduino you can find:

1. Arduino Leonardo

2. Arduino Micro without headers

3. Arduino Nano

4. Arduino Nano 33 BLE

5. Arduino Nano 33 BLE Sense

6. Arduino Nano 33 IoT

Tech specs

Documentation

1. EAGLE FILES IN .ZIP

2. Schematics.pdf

3. BOARD SIZE IN .PDF

4. FRITZING IN .FZPZ

5. Arduino Docs

Pinout Diagram
