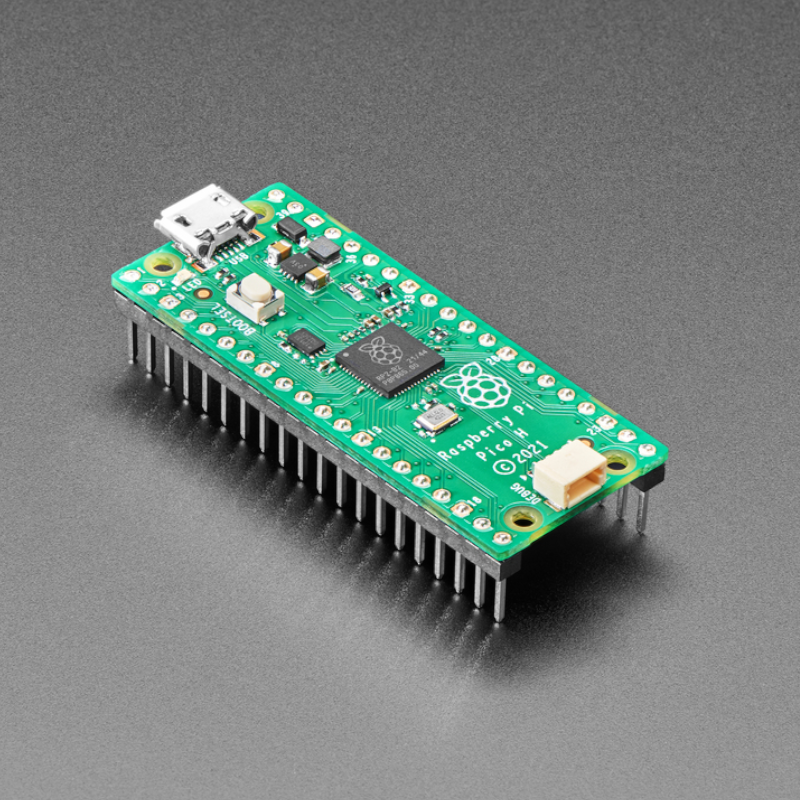

Raspberry Pi Pico H com header soldado

: PCO01176
5,30 €
preço com IVA incluído

Este Raspberry Pi Pico H é uma placa controladora de baixo custo mas de alto desempenho. Bastante parecida comn a Raspberry Pi Pic, mas com headers já soldados conector de 3 pinos para fazer debug.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Raspberry Pi Pico and Pico H

Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. Key features include:

  1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

  2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

  3. 264kB of SRAM, and 2MB of on-board flash memory

  4. USB 1.1 with device and host support

  5. Low-power sleep and dormant modes

  6. Drag-and-drop programming using mass storage over USB

  7. 26 × multi-function GPIO pins

  8. 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels

  9. Accurate clock and timer on-chip

  10. Temperature sensor

  11. Accelerated floating-point libraries on-chip

  12. 8 × Programmable I/O (PIO) state machines for custom peripheral support

The Raspberry Pi Pico comes as a castellated module allows soldering direct to carrier boards, while the Pico H comes with pre-soldered headers.

Note

Both boards have a three pin Serial Wire Debug (SWD) header. However, the Pico H has this broken out into a small, keyed, 3-pin connector while the Pico has three castellated through-hole pins adjacent to the edge of the board.



Pinout and design files

pico pinout

  1. Download the Pinout Diagram (PDF)

  2. Download Design Files (Cadence Allegro)

  3. Download STEP File

  4. Download Fritzing Part for Raspberry Pi Pico

  5. Download Fritzing Part for Raspberry Pi Pico H

Note

More information on Fritzing is available on the fritzing.org website.



Documents:

Raspberry Pi Pico Documentation
