Beetle (1Pc)
  • Beetle (1Pc)
  • Beetle (1Pc)
  • Beetle (1Pc)

Beetle (1Pc)

: ARD02044
9,50 €
preço com IVA incluído

O Arduino "Beetle" é o melhor compromisso entre tamnaho e funcionalidade que conseguimos num Arduino. Com um microcontrolador AtMega32u4, compativel com o bootloader do Leonardo, este "Beetle" disponibiliza 10 pinos digitais, 5 analógicos e 4 de PWM. Ideal para projetos wearable e outros onde o espaço é reduzido.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

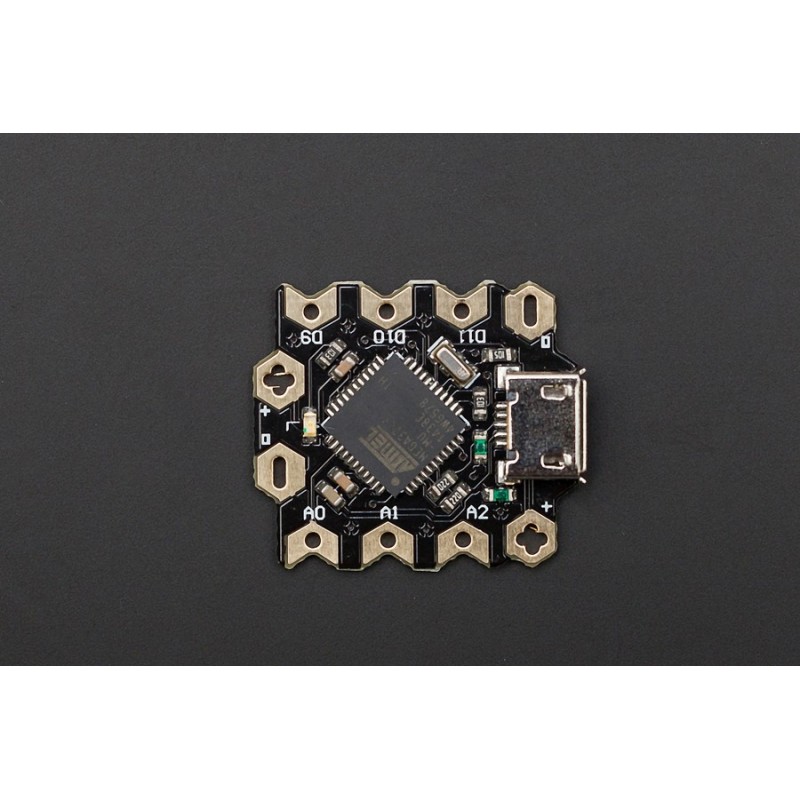

Beetle is a extremely the smallest  Arduino leonardo board.  It derives its core notion from minimalism without compromising functionality.

It comes with Atmel AtMega32u4 ( datasheet) @16MHz clock time and has expanded amounts of interfaces: 10 digital pins, 5 analog pins and 4 pwn pins. To further make it user-friendly, it is compatible with Micro USB so that direct programming and testing is no longer a headache. Select "Arduino Leonardo (tools >board > Arduino Leonardo in Arduino IDE), the ATmega32U4 comes preburned with a bootloader that allows you to upload any new code that is applicable to Arduino Leonardo.

As the smallest Arduino Leonardo, it enjoys similar powerful functionalities. Beetle aims to solve problems of low-cost controller, ease-of-using properly, and to provide a low cost solution for disposable projects, such as DIY projects, workshops, gift projects, E-Textiles and educational. For students and makers who can not afford too much on hardware purchasing, Beetle can be a great solution for them.

DFRduino Leonardo, Nano, Nova and Beetle

left to right: DFRduino Leonardo, Nano, Nova and Beetle
DFRobot released it's a new product called Beetle BLE - The smallest Arduino bluetooth 4.0, which is an Arduino Uno based board with  bluetooth 4.0 (BLE).  It is probably the smallest Arduino BLE board in the market.

Features

  • 20mm X 22mm compact size
  • Direct downloading and testing via Micro USB
  • V-shaped large-size gold-plated IO ports make it convenient for the user to twist wires upon, and can also be directly sewn on clothes with conductive thread.
  • Two honeycomb shape gold-plated power interface
  • Magic light blue soft BLINK indicator

Specification

  • Microcontroller: ATmega32u4
  • Clock Speed: 16 MHz
  • Operating Voltage: 5V DC
  • Digital I/O Pins: 10
  • PWM Channels: 4
  • Analog Input Channels: 5
  • UART: 1
  • I2C: 1
  • Micro USB: 1
  • Power Ports: 2
  • Flash Memory:  32 KB of which 4KB used by bootloader
  • SRAM:  2.5 KB
  • EEPROM:  1 KB
  • Size: 20mm*22mm*3.8mm

Documents

Shipping List

  • Beetle x1
ARD02044
