pcDuino - Shield Conversor de Níveis Tensão

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

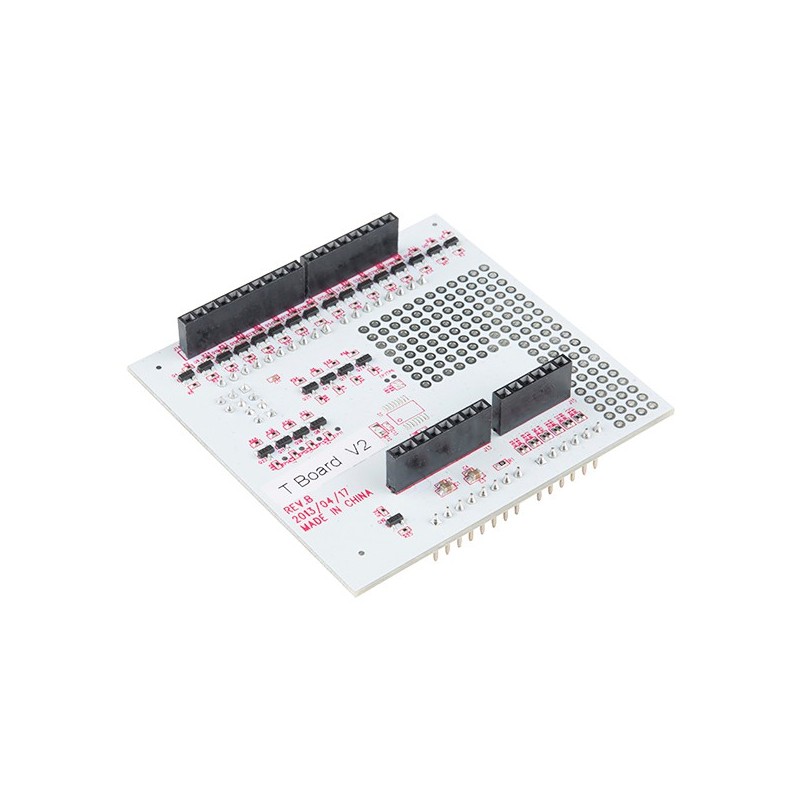

We all know that not every Arduino shield is 3.3V, many are 5V boards. This is the voltage translator shield, an easy to use add-on for the pcDuino2 or pcDuino3 to give your dev board the ability to use 5V Arduino shields. It’s simple, just attach this board onto you pcDuino2 and stack your favorite 5V Arduino shield on top, that’s it!

Each voltage translator shield is equipped with the same Arduino Uno R3 header configuration as the pcDuino and even includes a small soldering area for prototyping.

Documents:

• Schematic
• Product Page
• Product Video
