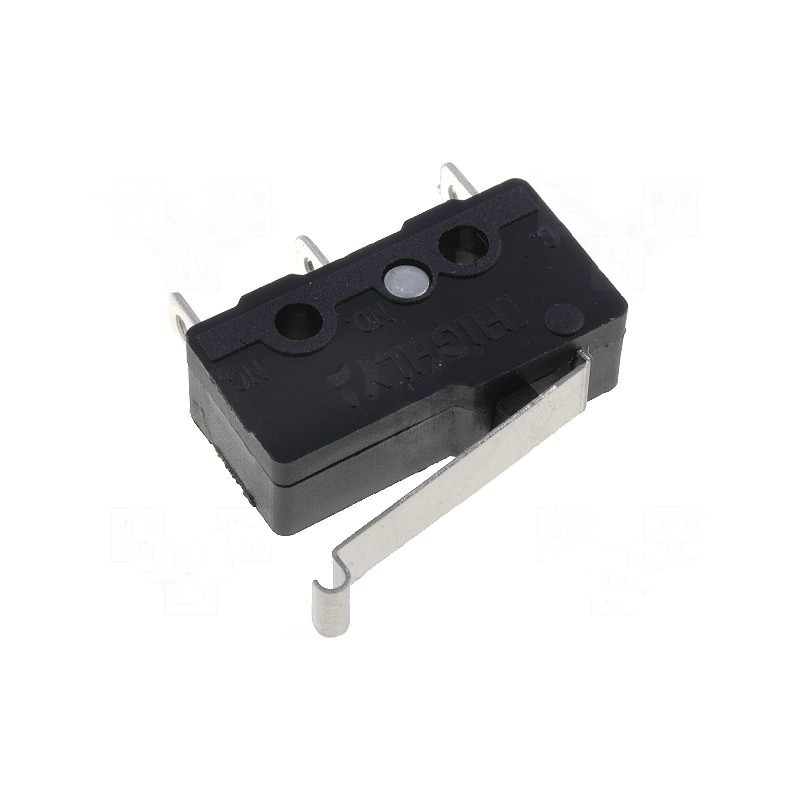

Fim de Curso com Simulador de Rodizio

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

Specification:

Switch type: microswitch

Switches features: with lever with roller simulation

Contacts configuration: SPDT

AC contacts rating (at resistance load): 3 A / 250 VAC

Switching method: ON-(ON)

Stable positions number: 1-position

Sealing: IP40

Leads: for soldering

Body dimensions: 19.8 x 6.4 x 10.2mm

Mechanical durability: 1000000cycles

Operating temperature: -25...70°C

Switching torque: 1.5N

Lever length: 17mm

Electrical life: 100000cycles

Max. contact resistance: 30mΩ

Min. insulation resistance: 100MΩ

Terminal pitch: 7.3mm
