![Microswitch OMRON D3V - c/ haste de 50.9mm Microswitch OMRON D3V - c/ haste de 50.9mm](https://www.botnroll.com/4129-medium_default/microswitch-omron-d3v-c-haste-de-509mm.jpg)

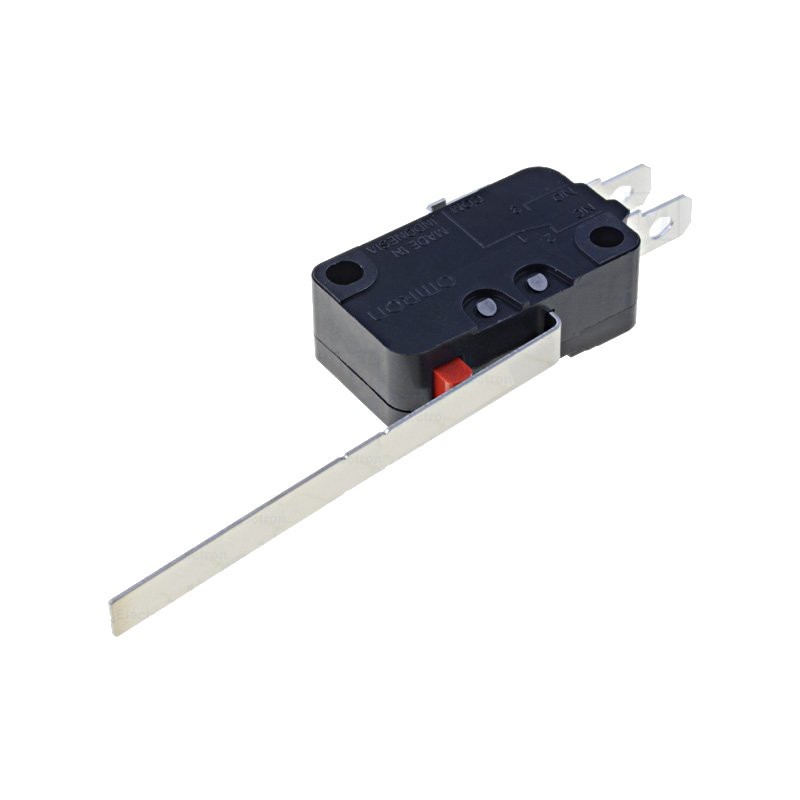

Interruptor Fim de Curso com haste de 50.9mm
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.
Manufacturer | OMRON |
Switch type | microswitch |
Switches features | with lever |
Contacts configuration | SPDT |
AC contacts rating (at resistance load) |
16 A / 250 VAC |
DC contacts rating (at resistance load) |
10 A / 30 VDC |
Switching method | ON-(ON) |
Stable positions number | 1-position |
Sealing | IP40 |
Leads | for soldering, 4.75x0.5mm connectors |
Body dimensions | 27.8 x 10.3 x 15.9mm |
Mechanical durability | 10000000cycles |
Operating temperature | -25...105°C |
Switching torque | 0.98N |
Lever length | 50.9mm |
Electrical life | 100000cycles |
Max. contact resistance: | 30mΩ |
Contact plating | silver plated |
Min. insulation resistance | 100MΩ |
