Interruptor de painel Redondo Iluminado
  • Interruptor de painel Redondo Iluminado

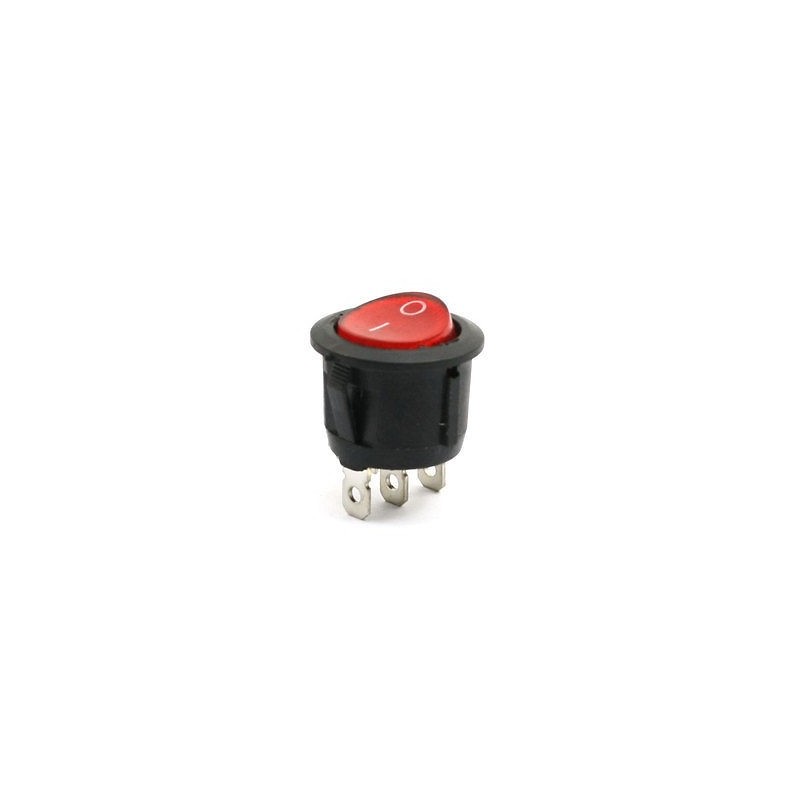

Interruptor de Painel Rocker 20mm Iluminado Vermelho

:CEL10016
0,95 €
preço com IVA incluído

Este pequeno interruptor on/off (SPST) de painel é suporta até 6A em 250VAC e pode ser montado num buraco com 20mm diâmetro. Com lampada 230Vac, Vermelho.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos



Description

Miniature SPST neon illuminated rocker switches, available in red or green. Panel cut out Ø20mm. Fitted with 4.8mm blade style terminals. Snap-in mounting, easy to install into panel. Nylon Housing with silver plated brass terminals.

General Specification:

  • Model: KCD1-105 Series.
  • Product Name: Rocker Switch.
  • Lamp Color: Red/Green.
  • Pole: Single Pole Double Throw (SPDT).
  • Position: On/Off 2-positions.
  • Rated Voltage: 6A~250VAC/ 10A~125VAC.
  • Overall Size: Ø23mm x 25mm.
  • Mounting Type: Snap-In.
  • Pin Spacing: 7mm.
  • Color: Black.

Related Information:

CEL10016
