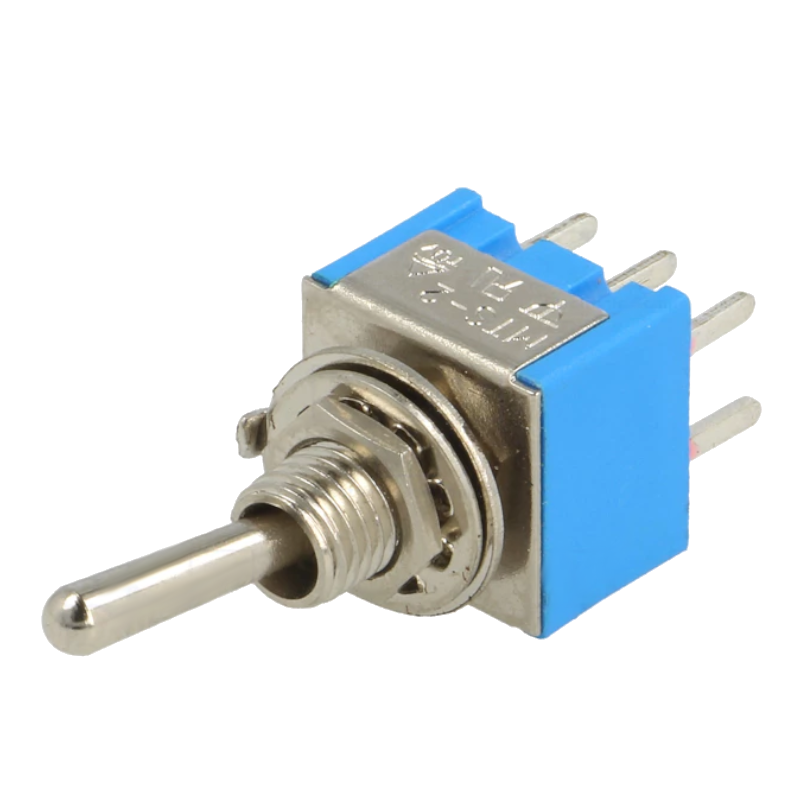

INTERRUPTOR TOOGLE 2x3 PINOS ON-ON DPDT

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Type of Switch: Toggle

Number of positions: 2

Contacts configuration: DPDT

Switching method (the position in bracket indicates momentary position): ON-ON

AC contacts rating @R (at resistive load): 3A/250V AC

Leads: for PCB

Operating temperature: -25º ~ 85ºC

Kind of toggle: Round

Mounting hole diameter: Ø6mm

Knob height: 11mm

Max. contact resistance: 20mΩ

Body dimensions: 13.2x12.9x9.5mm

Electrical life: 20000 cycles

Actuator material: metal

Additional information

1. Gross weight: 6.075 g

2. Manufacturer part number: TSM202A2

Documents

CEL10158.pdf
