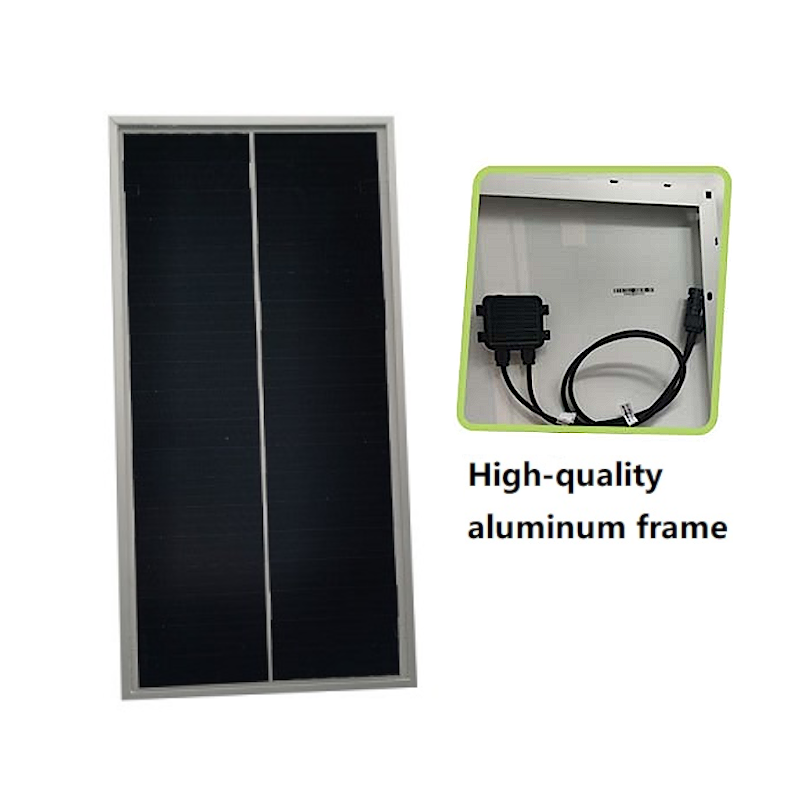

Painel Solar Monocristalino 12V 20W

: FAL09031
24,95 €
preço com IVA incluído

Painel Solar com 20W de potência nominal, a que corresponde uma tensão Vmp de 19.8V e uma corrente Imp de 1.01A.

A tensão em circuito aberto é de 23.4V.

Para construir um kit fotovoltaico completo, considere os seguintes produtos:

BAT01059 + FAL09014 + FAL11000

ou para um sistema mais potente:

BAT01076 + FAL11002



Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



undefined

Advantages:



  1. The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 18.08%.
  2. Shingled string welding process, beautiful and neat.
  3. Using tempered glass, high transparency.
  4. Anti-corrosion EVA effectively protects the battery panel.
  5. Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
  6. Lightweight and flexible features can make it seamlessly integrated into your vehicle.
  7. Packed in a single carton, with protective corners on all four corners.
  8. OEM and ODM supported.



Specification：

Mechanical DataStandard Test Conditions AM=1.5, E=1000W/m2, TC=25℃
Nominal Power 20W
Cell Type Monocrystalline
Module Efficiency 18.08%
Maximum Power Current (Impp) 1.01A
Maximum Power Voltage (Vmp) 19.8V
Open-circuit voltage (Voc) 23.4V
Short-circuit current (ISC) 1.34A
Maximum System Voltage 1000V
Output Tolerance ±3%
Cable None
Connector Type None
Module Structure Aluminum Frame / Glass / EVA /Backsheet (White)
Junction box rating ≥IP67
Number of Diodes One
Working Temperature -40℃~+80℃
Packaging
Module Dimensions 480*240*30mm
Module Weight 0.9kg
Package Single Package





Product Details：





Scope of application：

Prevent the loss of electricity: used on the roof of the car, charge the car battery at any time. Can prevent the car battery from losing electricity, and solve the situation that the car cannot be fired due to the battery loss caused by the long-term parking of the vehicle.

On-board electrical appliances: when using on-board electrical appliances, the original power of the car battery will not lose (car audio, navigator, driving recorder, exhaust fan, car blower, car refrigerator, cell phone, etc.)

Experimental power generation: DIY experiments for schools.
