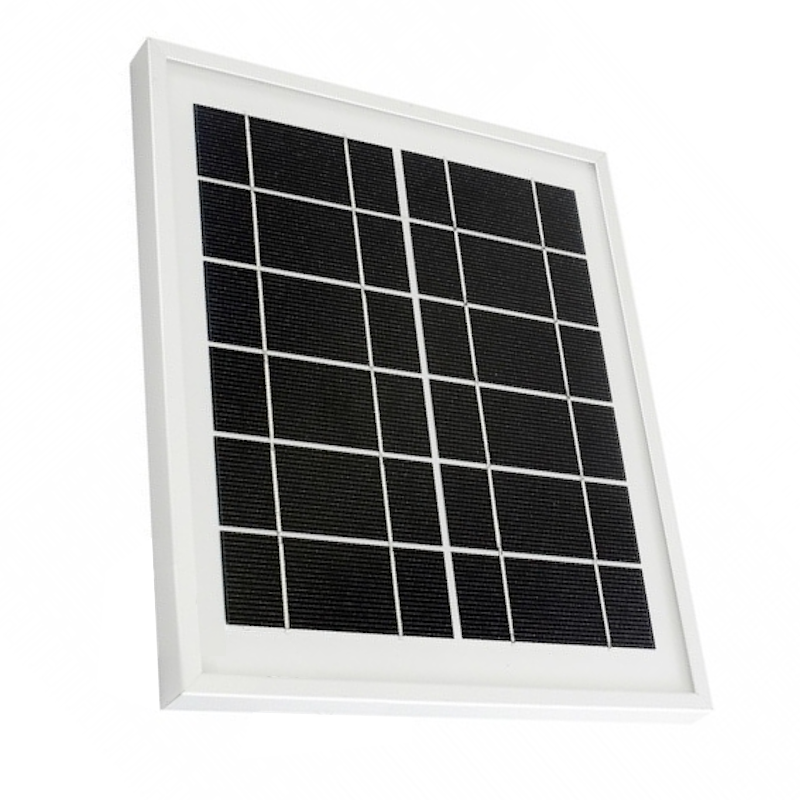

Painel Solar 6V 5W 230x195mm

: FAL09016
14,95 €
preço com IVA incluído
Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Note: the Solar Power Manager is NOT included.

Specifications

  • Solar cell type: 156 monocrystalline cell
  • Surface: toughened glass
  • Frame material: anodic oxidation aluminum alloy
  • Back board material: 0.25mm PET
  • Power: 5.0W ± 5%
  • Operating voltage: 6.0V ± 5%
  • Operating current: 833mA ± 5% (max)
  • Open circuit voltage: 7.2V ± 5%
  • Short circuit current: 916mA ± 5%
  • For use with: Solar Power Manager

Note: specifications above are tested on standard condition: 1000W/m2 radiation intensity, 25℃, AM1.5 air quality.

Application Example

A simple solar power supply system:


Dimension


Package Content

Weight: 0.533 kg

Note: the Solar Power Manager is NOT included.

  1. Solar Panel (6V 5W) x1
FAL09016
