Painel Solar 2W 80X180
  • Painel Solar 2W 80X180
  • Painel Solar 2W 80X180
  • Painel Solar 2W 80X180

Painel Solar 2W 80X180

: FAL01041
13,50 €
preço com IVA incluído
Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

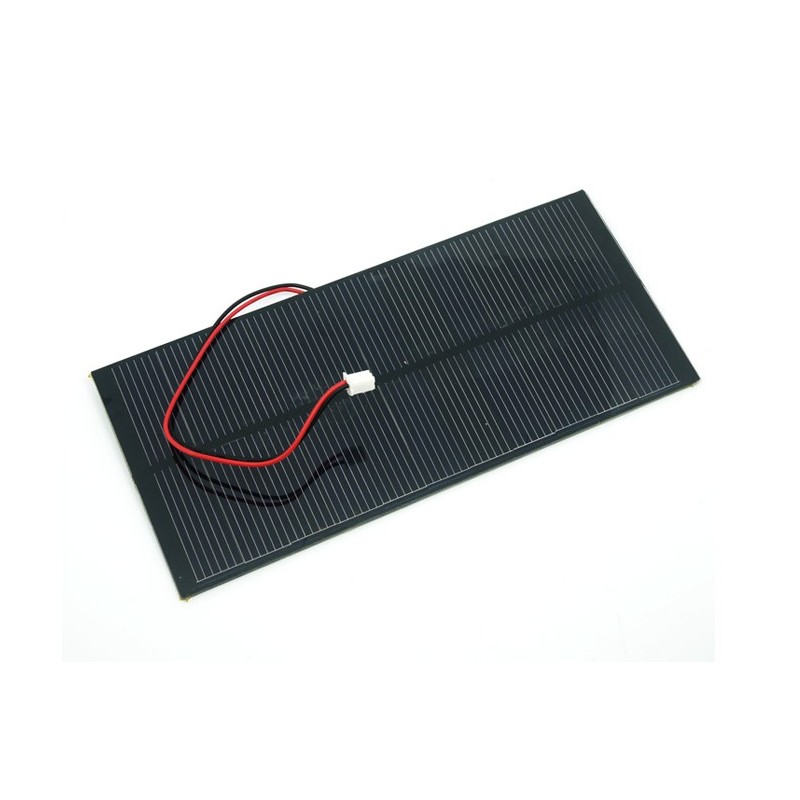

This solar panel is made of single-crystal material that performs high solar energy transformation efficiency at 17%. It has a fine resin surface and sturdy back suitable for outdoor environments. A 2mm JST connecter is attached to the penal, which makes it perfect to team up with most of our can-use-solar-power-supply boards, like Seeeduino microcontroller series, Lipo Rider charging boards seriesand XBee carrier WSN products series.



The typical open circuit voltage is around 5V, depending on light intensity. In those bright summer days with clear sky and big sun, the peak OC voltage can rush up to 10V. To prevent any damage to boards that accept a narrow range of input voltage, like Lipo Rider, it’s recommended to check whether the OC voltage is safe before any connection.



Features

  • Dimensions: 180x80x2.5(±0.2) mm
  • Typical voltage: 5.5V
  • Typical current: 360mA
  • Open-circuit voltage: 8.2 V
  • Maximum load voltage: 6.4V

FAL01041
