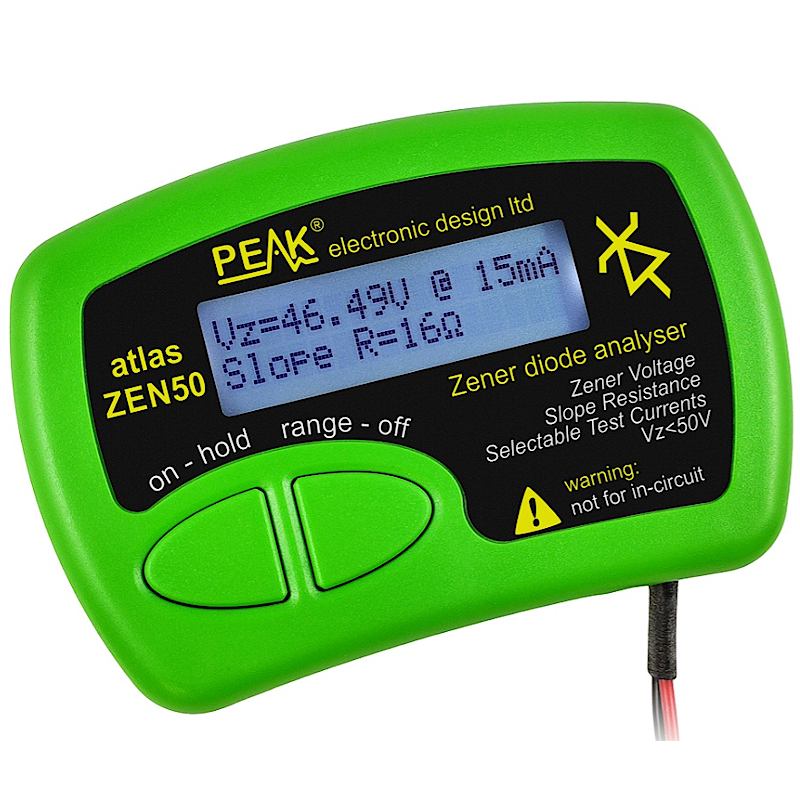

Analisador de Diodos Atlas Zen (0 - 50 V)- Peak ZEN50

: FER02058
98,00 €
preço com IVA incluído

O Atlas ZEN50 é um analisador compacto de díodos, capaz de medir tensões até 50V. Este dispositivo também consegue fazer testes a LEDs, VDRs e TVSs, utilizando pulsos de teste estreitos para minimizar o aquecimento.


Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

ZEN50 - Atlas ZEN Zener Diode Analyser Information:

The Atlas ZEN is ideal for testing Zener diodes (including avalanche diodes), transient suppressors, LEDs and LED strings.

It generates constant current pulses (selectable from 2mA, 5mA, 10mA and 15mA) at voltages from 0V to 50V. So even high voltage Zeners or high voltage LED strings can be tested.

Test currents are supplied in narrow pulses to ensure that the component under test remains at a constant temperature.

The voltage of the part is displayed on the screen together with the test current and also a measure of the component's slope resistance (also known as dynamic impedance).

Includes:
  1. ZEN50 Instrument.
  2. Fitted flexible test leads with gold plated crocs.
  3. Comprehensive illustrated user guide.



Technical Specifications


Voltage range:   0.00V to 50.00V
Test currents:   2mA, 5mA, 10mA and 15mA
Slope resistance range:   0 Ohms to 8000 Ohms
Zener voltage accuracy:   ±1% ±40mV
Test current duty cycle:   3% (typ)
Display sample rate:   2Hz (typ)
Operating temperature range:   15°C to 35°C (60°F to 95°F)
Display type:   Backlit alphanumeric LCD


Analyser type: Zeners, LEDs, TVS etc.
Test currents: 2mA, 5mA, 10mA, 15mA
Voltage range: 0.00 to 50.00V
Slope resistance range: 0 to 8000 Ohms
Test method: Triple pulse burst @ 10pps (typ)
Test current duty cycle:              3%
Display type: Alphanumeric LCD (with backlight)
