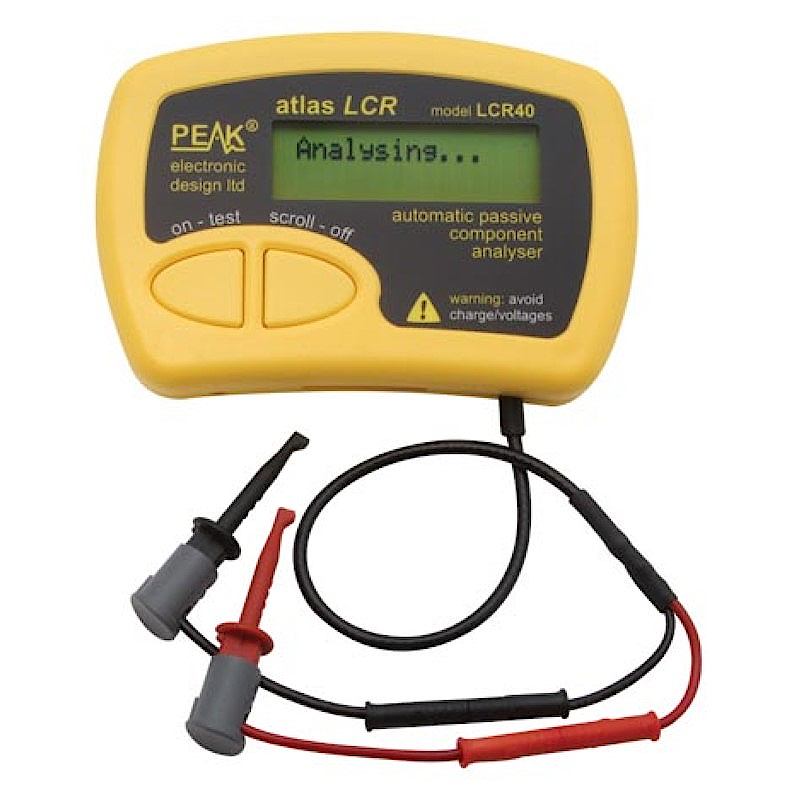

Analisador de Componentes Passivos - Peak LCR40

: FER02056
132,00 €
preço com IVA incluído

O LCR40 é um analisador automático de componentes passivos que identifica e mede automaticamente resistências, condensadores e bobines. Oferece precisão básica de 1% para resitências e 1,5% para bobines e condensadores.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

  1. automatic component identification
  2. automatic test frequency selection (DC, 1kHz, 15kHz and
    200kHz)
  3. delayed or instant analysis (for hands free operation)
  4. auto power-off
  5. probe and test lead compensation
  6. interchangeable probe sets
  7. automatic ranging and scaling
  8. 1% basic accuracy for resistors
  9. 1.5% basic accuracy for inductors and capacitors



Specifications

  1. Specification Summary at 20°C (68°F) unless otherwise specified
  2. resistance:
    1. range (resistance): 1Ohm ~ 2MOhm
    2. resolution (resistance): 0.3Ohm
    3. accuracy (resistance): ±1.0%±1.2Ohm
  3. capacitance:
    1. range (capacitance): 0.5pF ~ 10000µF
    2. resolution (capacitance): 0.2pF
    3. accuracy (capacitance): ±1.5%±1.0pF
  4. inductance:
    1. range (inductance): 1µH ~ 10H
    2. resolution (inductance): 0.4µH
    3. accuracy (inductance): ±1.5%±1.6µH
  5. peak test voltage across O/C: -1.05V ~ +1.05V
  6. peak test current into short circuit: -3.25mA ~ +3.25mA
  7. test frequency accuracy: -1.5% ~ +1.5%
  8. sine purity: -60dB 3rd harmonic
  9. operating temperature range: 10°C ~ 40°C (50F ~ 104F)
  10. battery operating voltage: 8.5V ~ 13V
  11. Weight per product (nett): 0.098kg (3.5oz)
  12. Dimensions per product : 103 x 70 x 20 mm (4.1" x 2.8" x 0.8")
