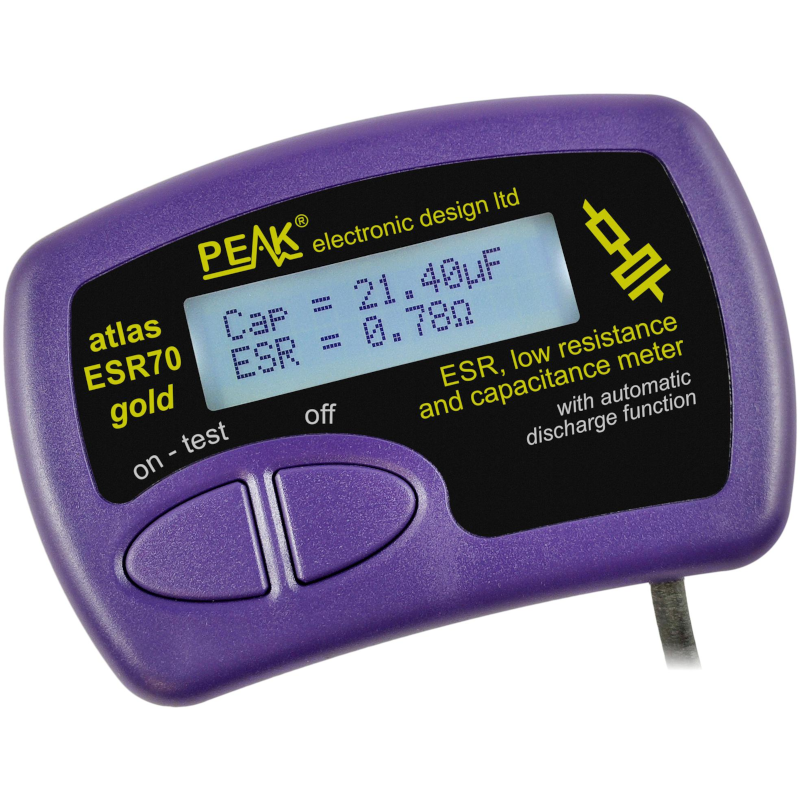

Analisador de Condensadores e ESR (Resistência em Série equivalente) - Peak ESR70

: FER02055
124,00 €
preço com IVA incluído

O ESR70 da Velleman é um medidor portátil de capacitância e ESR (Resistência Equivalente em Série), ideal para testar capacitores dentro ou fora de circuitos. Mede capacitâncias de 1 µF a 22 mF e ESR de 0 a 40 Ω, com resolução de 0,01 Ω. Possui proteção contra cargas residuais, alerta audível e desligamento automático.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

  1. ESR measurement range 0 to 40 Ohm
  2. ESR resolution as low as 0.01 Ohm
  3. capacitance range 1µF…22mF (22,000µF)
  4. can also be used for low-Ohms resistance checking
  5. built-in protection circuitry means risk of damage to the
    unit due to residual charge is greatly reduced
  6. integrated controlled discharge circuitry reduces the need
    for the user to manually discharge capacitors before test
  7. use in or out of circuit for ESR measurement
  8. automatic and manual power-off
  9. with audible alerts
  10. user manual: English only





Specifications

Product basic info
Instruction manual languages       English
Primary colours Purple
Additional colours Black
Depth unit 20 mm
Height unit 70 mm
Width unit 103 mm
Weight unit 98 g
Material ABS
Detailed information
  • Measuring Range: 0 Ohm ~ 40 Ohm
  • Resolution (ESR < 2 Ohm): 0.01 Ohm ~ 0.02 Ohm
  • Resolution (ESR > 2 Ohm): 0.1 Ohm ~ 0.2 Ohm
  • Accuracy (ESR < 2 Ohm): ± 1.5 % ± 0.02 Ohm
  • Accuracy (ESR > 2 Ohm): ± 1.5 % ± 0.2 Ohm
  • Abuse Voltage C < 10 µF ± 275 V; C > 10 µF ± 50 V
  • Auto-Discharge Voltage Limit: ± 50 V



Technical data
Auto shut-off      Yes



Environmental data
Operating temperature range           10-35 °C



Operational properties
Audible alerts
Battery voltage rating range 8.5-12 V
Capacitance measurement range       1-22000 µF
Auto shut-off time 60 s



Power supply
Batteries included Yes
Battery required Yes
Number of batteries 1
Battery voltage rating 12 V
Low battery indicator Yes
Voltage warning threshold 8.5 V
Battery composition                                 Alkaline
Battery IEC size A23 (8LR932 ,1811A, 3LR50, 8LR23, 8LR932, AS23S, E23A, GP12A, GP23, GP23A, K23A, L1018, LR23A, MN21, MN23, P23GA, VR22, V23GA)
