Conjunto de 15 módulos All-in-One para Raspberry Pi Pico (incluí placa ESP32-S3-Pico-M) ESP32-S3-Pico-Sensor-Kit-B

: PCO01200
54,90 €
preço com IVA incluído

Este é um pack de 15 módulos para a tua Rasberry Pi Pico ou para a ESP32-S3-Pico. Entre estes 15 módulos vais encontrar sensores mais comuns, como sensores de som ou infravermelhos, botões, Buzzers e ainda módulos LED. Todos estes componentes são fáceis de entender e de trabalhar com eles pelo que será uma ótima escolha para um iniciante.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

Nota: Este Kit apenas conta com a placa ESP32-S3-Pico-M, a Rasberry Pi Pico não está incluída.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

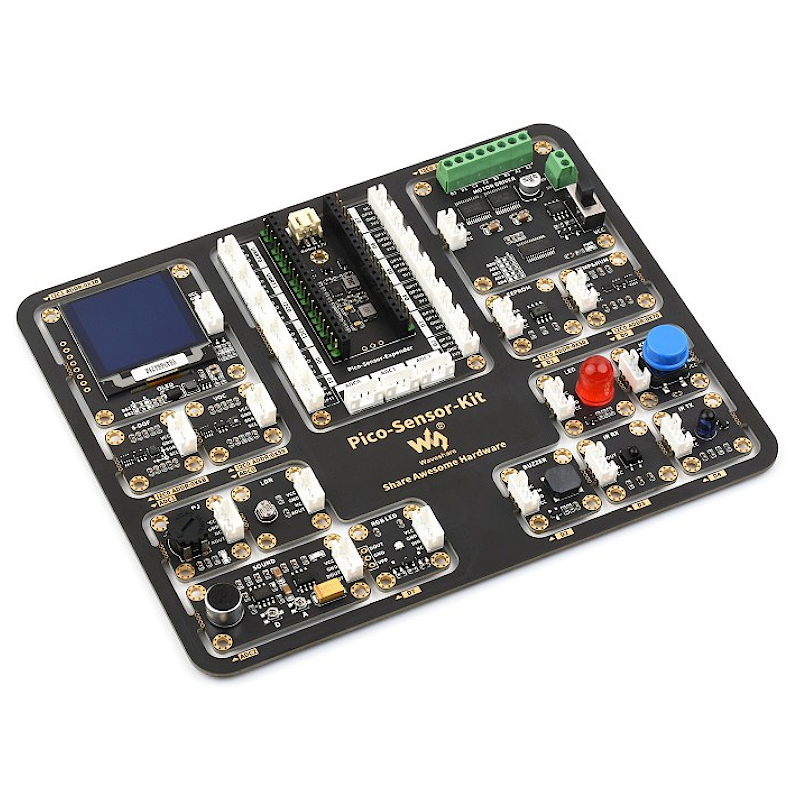

Raspberry Pi Pico Entry-Level Sensor Kit

Including 15 common modules such as LED, button, buzzer, etc. - out of the box as a whole kit, or can be separated to use independently

Comes with online development resources and manual




Features at a glance

  1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards

  2. All-in-one design, all modules are connected to Pico via PCB castellated holes, no soldering or wiring required.

  3. Including 15 common modules such as LED, button, buzzer, etc., which can be separated to use independently

  4. Comes with online development resources and manual (examples for Raspberry Pi Pico C/C++ and MicroPython)

Note: the PH2.0 cables are required for the connection with pico after the modules are separated.





Based On Raspberry Pi Pico

Suitable for Raspberry Pi Pico series boards, adapting 40PIN color-coded header






Pico Expansion Board + 15 Common Modules

Comes with relevant resources and tutorials to help you get started quickly


Pico-Sensor-Expender

① Onboard PH2.0 header for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time.
② Onboard PH2.0 4PIN headers for connecting modules




1.5inch OLED module

  1. Built in controller: SSD1327

  2. Resolution: 128×128

  3. 16 gray scale display

  4. I2C and SPI communication, switchable via onboard BS1 and BS2 resistors






6-axis Attitude Sensor

  1. Onboard QMI8658C (3-axis accelerometer, 3-axis gyroscope), for detecting motion and orientation

  2. 16-bit resolution for both accelerometer and gyroscope






VOC Sensor

  1. Onboard SGP40 digital VOC gas sensor for air quality detection

  2. Measurement range: 0~1000ppm ethanol equivalents

  3. Communication interface: I2C (constant address: 0x59)

  4. Operating voltage: 3.3V/5V






Potentiometer module

Adjustable voltage output, after the output voltage exceeds the LED conduction voltage, the LED brightness will increase with voltage






Photoresistor module

For detecting the ambient light brightness, the output voltage will decrease as the brightness increases






Sound sensor module

For converting the sound signal into electrical signal, which is amplified through operational amplifier and then inputted to the comparator, providing analog voltage output and digital output respectively. Adjustable output amplitude via potentiometer A and digital interface trigger voltage via potentiometer D.






RGB LED module

  1. Built in controller: WS2812B

  2. Brightness: 256 levels adjustable

  3. Color depth: 24 bits (R / G / B 8-bit each color, can be combined to 16777216 colors)






Buzzer module

Onboard passive buzzer, outputs different sounds according to the different frequencies of the electrical signal.






IR Receiver Module

Onboard IRM-H638T/TR2 for receiving infrared remote control signal






IR Transmitter module

Onboard TSAL6400 for transmitting infrared remote control signals, with the infrared light wavelength of 940nm.






Button Module

Onboard 12×12mm button, for human-computer interaction






LED Module

Onboard 10mm LED with soft light, for status indication








Temperature/humidity module

Onboard SHTC3 chip supports measuring 0 to 100% relative humidity and -40°C to 125°C temperature, with a typical measurement accuracy of ±2% relative humidity and ±0.2°C






EEPROM Module

Onboard AT24C04 chip for preserving 2Kbit of data when powered down






Motor Driver Module

  1. Onboard PCA9685 chip, can output 12-bit hardware PWM to control motor speed

  2. Onboard TB6612FNG dual H-bridge motor driver chip, high efficiency, not easy to heat

  3. logic voltage: 3.3V





All-in-one design, out of the box

All modules are connected to pico via PCB castellated holes, no soldering or wiring required, or can be separated to use Independently

Warm tips: please pay attention to the sharp cuts and fragments when disassembling the modules.




Outline dimensions



Resources & Services


Wiki: www.waveshare.com/wiki/Pico-Sensor-Kit-B





Package Content

Weight: 0.22 kg

  1. Pico-Sensor-Kit-B x1

  2. ESP32-S3-Pico-M x1

  3. IR remote controller x1

  4. PH2.0 dual-plug 4PIN cable x15

  5. PH2.0 4PIN cable x5

  6. Type A to Type C USB cable ~1m x1
