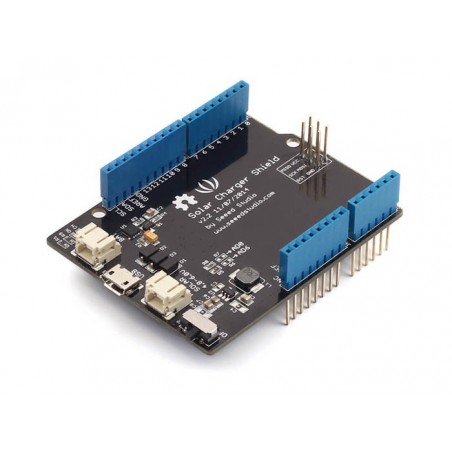

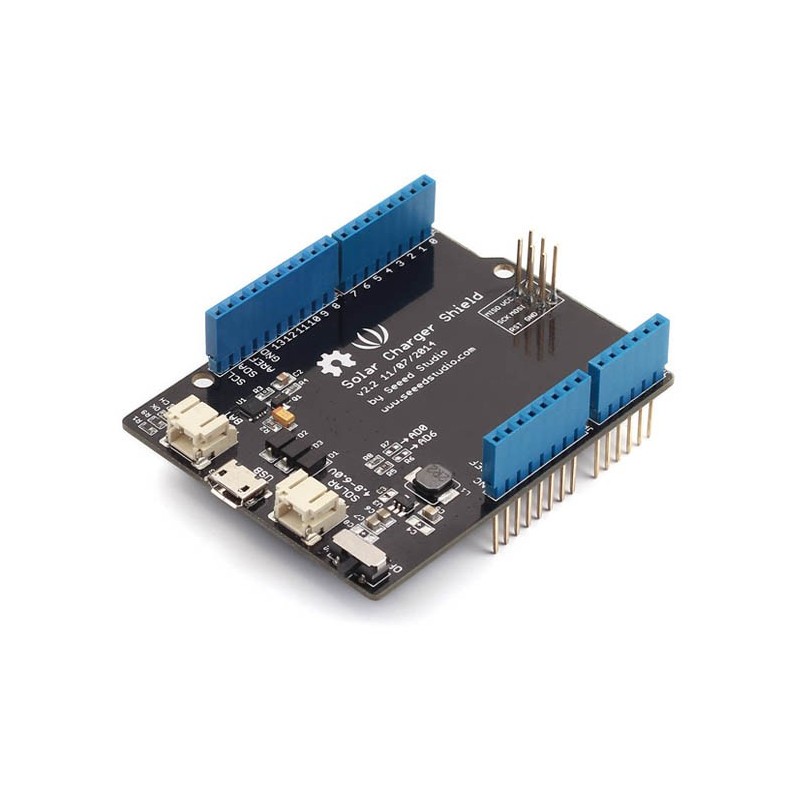

Shield Carregador Solar & Gestão Bateria V2.2

: ARD03034
14,75 €
preço com IVA incluído

The solar charger is a stackable shield to Arduino compatible platforms, enables adaptive battery power and act as energy harvester for in-field charging.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos



You may use various batteries that has the voltage of 3.0V-4.2V to shift up for 5V output, or put on Li-ion battery and solar panel to form an autonomous sensor unit. The maximum current provided by the board can get up to 600mA. An usb connector is also useful to charge the battery.


Features:

  • Output Disconnect
  • Short circuit protection
  • 3W Output Power when connecting battery
  • Continuous Charge Current Up to 900mA
  • Battery status indication ( Red : Charging , Green: Charged )
  • Micro-USB Connector




Specification:

  • Battery input voltage: 3.0~4.5V
  • USB input voltage: 4.75~5.25V
  • Solar input voltage: 4.8~6V
  • Maximum Output Power(with battery): 3W(600mA@5V)
  • Ripple voltage：<100mV @ 500mA
  • Dimensions: 68*53mm



Documents:

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to ourforum.
