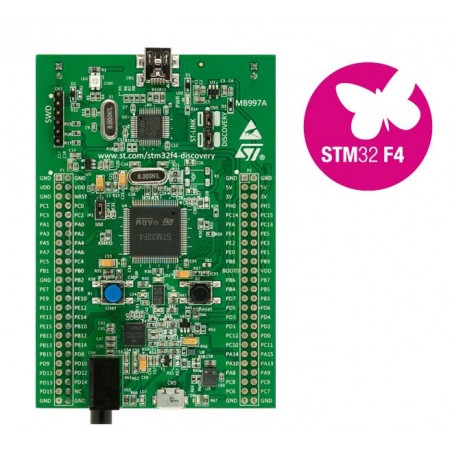

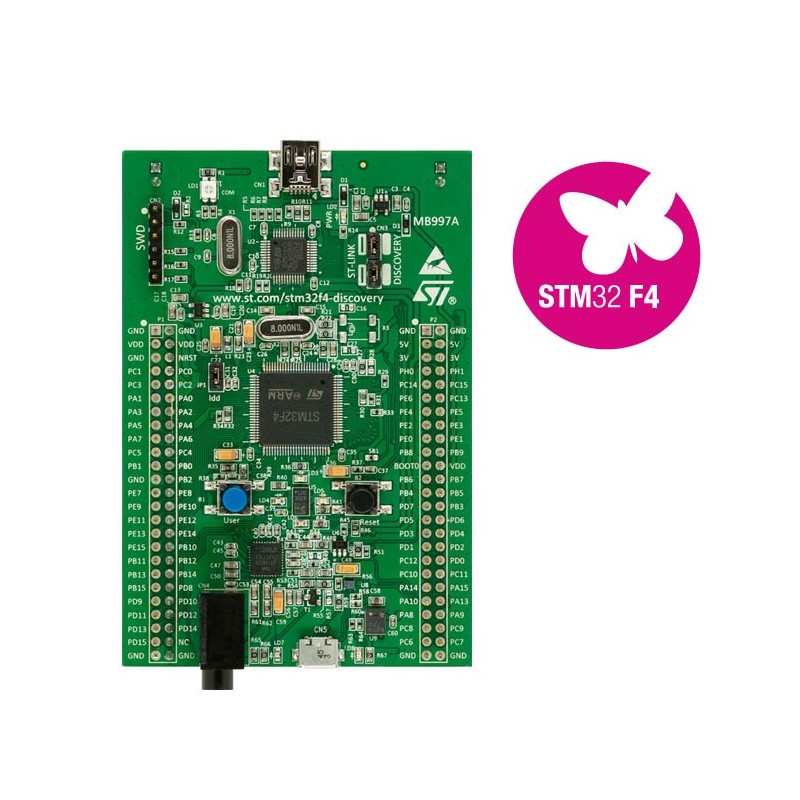

STM32F407 Development Board (STM32F407G-DISC1)

The STM32F4DISCOVERY kit leverages the capabilities of the STM32F407 high performance microcontrollers, to allow users to easily develop applications featuring audio.

It includes an ST-LINK embedded debug tool, one ST-MEMS digital accelerometer, a digital microphone, one audio DAC with integrated class D speaker driver, LEDs, push-buttons and an USB OTG micro-AB connector.

To expand the functionality of the STM32F4DISCOVERY kit with ethernet connectivity, LCD display and more, visit the www.st.com/stm32f4dis-expansion webpage.

With the latest board enhancement, the new order code STM32F407G-DISC1 has replaced the old reference STM32F4DISCOVERY.

Key Features

• STM32F407VGT6 microcontroller featuring 32-bit ARM^® Cortex^® -M4 with FPU core, 1-Mbyte Flash memory, 192-Kbyte RAM in an LQFP100 package
• On-board ST-LINK/V2 on STM32F4DISCOVERY (old reference) or ST-LINK/V2-A on STM32F407G-DISC1 (new order code)
• USB ST-LINK with re-enumeration capability and three different interfaces:
  • Debug port
  • Virtual Com port (with new order code only)
  • Mass storage (with new order code only)
• Board power supply: through USB bus or from an external 5 V supply voltage
• External application power supply: 3 V and 5 V
• LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
• MP45DT02 ST-MEMS audio sensor omni-directional digital microphone
• CS43L22 audio DAC with integrated class D speaker driver
• Eight LEDs:
  • LD1 (red/green) for USB communication
  • LD2 (red) for 3.3 V power on
  • Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
  • 2 USB OTG LEDs LD7 (green) VBUS and LD8 (red) over-current
• Two push-buttons (user and reset)
• USB OTG FS with micro-AB connector
• Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
• Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32068 to use legacy standard libraries.
