• DESCRIPTION

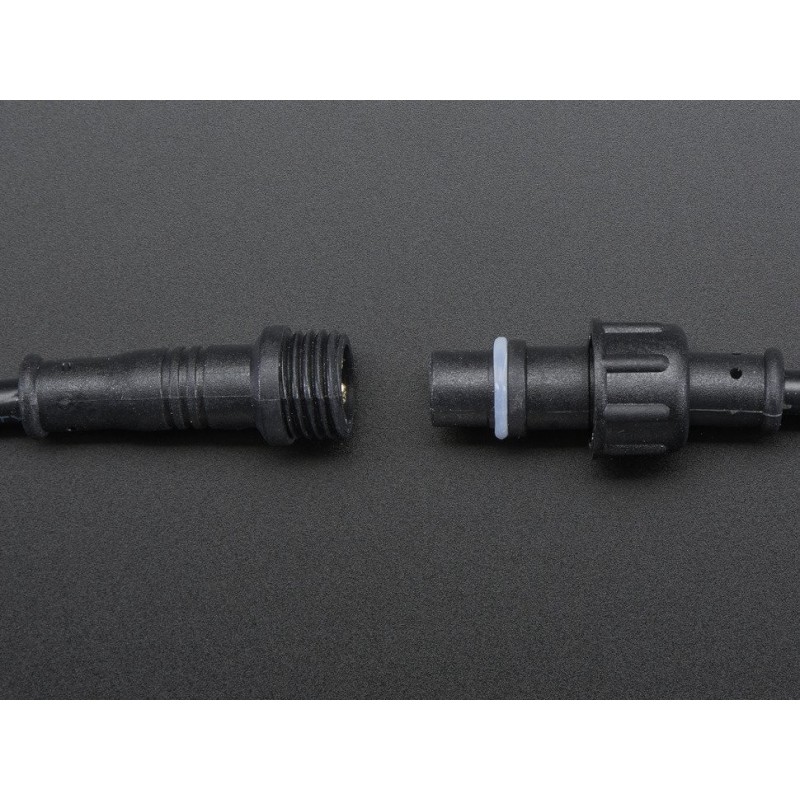

  Outdoor enthusiasts rejoice! We now have very useful 4-wire polarized cable sets in a waterproof variety. These cable sets are ideal for projects that must weather the weather: dust, water, rain, snow, tornado (not volcano proof!). Each cable has 4 color-coded conductors (red, black, white yellow) that match between the sides, for easy wiring and connectors are polarized so you can't plug them in wrong. They are a little bulky the o-ring and removable over-screw. The o-ring is what makes the waterproof seal, and the over-screw keeps the two halves connected solidly

  Comes as a set of two cables - one plug and one jack. The total length of the connected cables is 16" (40cm).

• TECHNICAL DETAILS

  • Each half has a 7" long cable (not including the connector part)
  • 16" total length when plugged together
  • 4-pin polarized connector with 22AWG wires
  • Rated for up to 24VDC, up to 4A per connector
  • 0.58" (15mm) diameter at widest point
  • 0.2" (5mm) cable diameter
  • 20 grams per set
  • IP67 rated
  • PVC Connector & Jacket
